Manufactuing CNC hydraulic press brake machine/CNC hydraulic bending machine
3D graphical CNC press brake machine control system:
The sheet press brake machine use new generation DA-66Touch controls offers an even higher
grade of efficiency in programming, operation and control of today’s press brakes.
Ease of use combined with state-of-the-art technology go hand in hand,
improving productivity.
The touch screengives access to the proven Delem user-interface and enables
direct navigationbetween programming and production. Functions are directly
located where you need them, offering optimised ergonomics throughout the
application.
The bending machine with DA-66T offers 2D programming that includes automatic bend sequence
calculation and collision detection. Full 3D machine set-up with multiple tool
stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise
set-up time. This makes using press brakes easier, more efficient and more
versatile then ever.

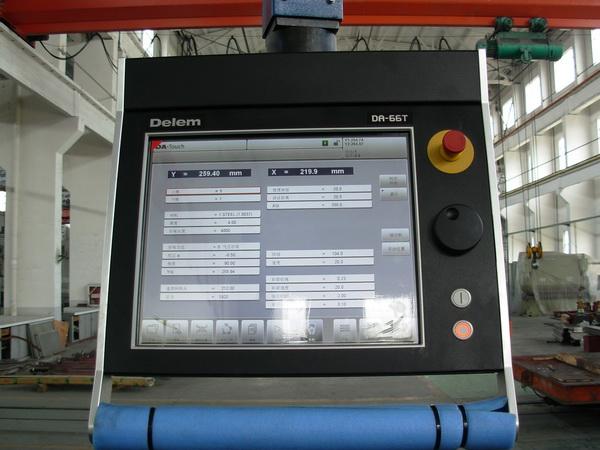

da-66T used on CNC hydraulic press brake
Standard Configuration for hydraulic press brake bending machine:
Standard four axes(Y1,Y2,X and V) for steel sheet press brake machine
Holistic welding structure treated by annealing
lower table cylinder crowning mechanism controlled by da-56 system.
CNC system controls mechanical titled flexible compensation working table
Swiss CYBELEC DNC600 system or Geramny DELEM DA-56 system
High efficiency electric hydraulic proportional system from europe
press brake special light ebcored-gauge from Europe
High efficiency AC servo motor and driver from JAPAN
oil seals from out outside
European or Chinese high efficiency meshing gear pump
ball screw and linear guide
Standard upper and lower dies
Standard front support sheet frame
Mechnical press brake bendingTechnical Parameter
| 1 | Type | CNC electro-hydraulic synchro press brake | |
| 2 | Working force | 600 T | |
| 3 | Length of table | 6500 mm | |
| 4 | distance between frames | 4800 mm | |
| 5 | Throat depth | 600 mm | |
| 6 | Open height | 760 mm | |
| 7 | Stroke | 320mm | |
| 8 | Speed | Idle down | 90mm/s |
| working | 9mm/s | ||
| return | 90mm/s | ||
| 9 | Main motor | 45kw | |
| 10 | CNC system |
Type: DA-56 Delem Co., Netherlands Control 3 Axis: Y1,Y2,X |
|
| 11 | Tool | With 1 punching and 1 bottom die | |
| Main Electric Elements | Schneider | ||
| 12 | Seal in the cylinders | NOK, Japan | |
| 13 | Gross weight | 65000 kg | |
| 14 | Overall sizes(mm) LxWxH | 6650x3280x5300 | |
| 15 | Packing: |
With plastic cover the machine should be disassembled for transport . it need three person and 15 days to install and testing. container:1x40’ OT, 2x40’ GP, |
|
| 17 | Service | The engineer will go to customer’s factory to install the machine. | |
Mechanical system of 6m long CNC press brake machine:

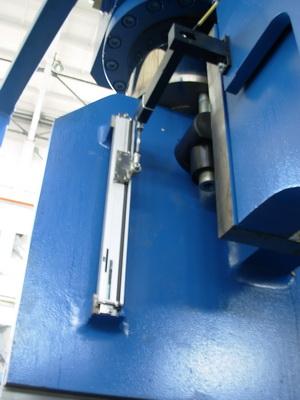

Two light rulers are installed at the two ends of the slide, making the
slide movement be parallel to the working table.
Adopt the working table compensation structure.
The CNC servo motor of the back gauge gives a high positioning accuracy

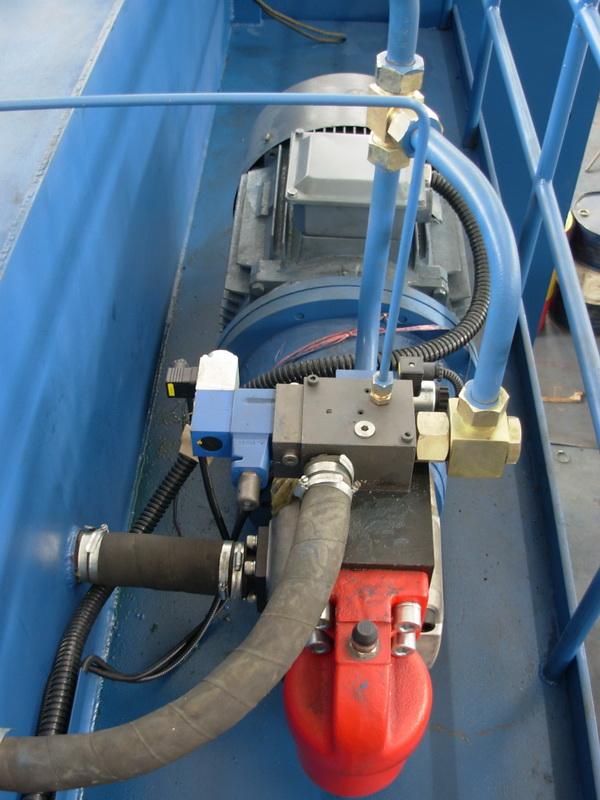

Hydraulic system for CNC sheet bending machine:
A complete electrolyte servo synchro CNC (Computer Numerical Control)
controlled press brake.
Adopt Bosch electrolyte servo system (from Germany)
drive system of LVD hydraulic press brake
Synchro control system for automatic press brake machine:

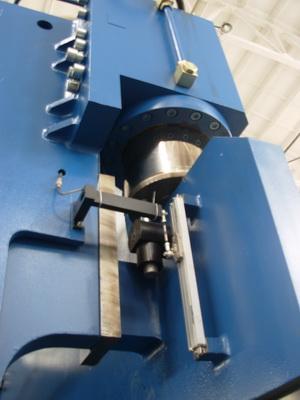

Two light rulers (Y1-Y2) have been installed at the two sides of the machine
to measure the exact distances
The position data will be delivered to the CNC system and then it can check
out the servo valve control signal (S2-S2).
Transmission system of 600T press brake:
High-precision ball screw and linear guide-way
AC servo motor and driver;
Our Service from heavy duty hydraulic press brake machine:
Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
Reply within 24 hours
Provide relevant product information
Answer questions if request
Give technical suggestion
Provide After-sales service 24hr × 7days per week
Test the machine before shipment
Provide technical guidance relate to use the machine
Supply one-year warranty period for the machine
Provide the spare parts at cost price after warranty period
Collect the feedback for the machine working
Provide long-term technical assistance.
