Hydraulic Plate CNC Sheet Metal Bending Machine 250 Ton Press Brake

13 feet hydraulic steel sheet press brake features

1. Adopts all_steel welded structure and stress elimination by

vibration with high machine strength and good rigidness.

2. Hydraulic upper transmission,torsion axis synchronization

with high accuracy,which is stable and reliable.

3. Back gauge can be viewd and programm by controller

4. Motorize stroke.

5. High bending accuracy.

6. Aging vibration

7. Bending for carbon steel,stainless,alloy,copper,galvanize sheet

and other sheet metal

8x4' feet plate press brake Specification

Packing and Shippping

• Seaworthy packing ,plastic film and iorn pallet
• Packaging optional: Wooden case
• Loading port: Shanghai or Ningbo
• the machine transport by sea or railway
• Technical service all life .
• Warranty: 24months
• Engineer available to service machinery abroad.

metal sheet press brake charateristic

• The mechnical press brake machine frame is entirely welded with steel plates and treated to relive stree by tempering,
• so the precision is well maintained
• hydraulic top drive stepless pressure adjustment and high quality sealing rings imported
• from overseas to ensure the machine tools relia bility
• mechanical synchronous mechanism and the complex compensation are designed so as
• to raise the workpieces precison.
• the stroke and distance of the backgage is adjusted by the motor and is well adjsuted
• by hand, the adjsutment is dispalyed by digital meters
• Inch, singlecontinuous operation mode being designed for the machine and reversing
• and maintain time can be controlled by the time relays
• safe fence and the electric interlocker have beend designed for the machine to ensure
• the operation safely

Option for electrical sheet press brake

• sectional tooling with different length may store forming a certian length to bend
• the closed frame wokpiece.
• Automatic crowned deflection compensation
• automatic front feedning device and rear pushing device
• two-hand control device
• light curtain protection or laser protection
• any tailor made are available on ewqueste.

Shipping Documents:

1. Operation Manual(hydraulic diagram,electro diagram)

2. Foundation plans

3. Quality Certification

4. Packing list

5. Conmercial invoice

6. Origin certificate

After Sales Service:

1. Our guarantee time is 5 years from B/L date.  If any component is damaged

during guarantee time, we can send the component to the customer

by DHL, TNT freely.

2. Our factory can send our engineer to the customer’s factory install,

commission and training freely. The customer provide the double trip tickets,

food and accommodation for our engineer.

The customer also can send the engineer to our factory to learn the operation

and maintains freely.

3. Our factory provide the service for the customer forever, if the customer need

operation help, can contact us by MSN, Skype, Email and Telephone at any time,

we provide 24 hours on-line service.

download brochure here

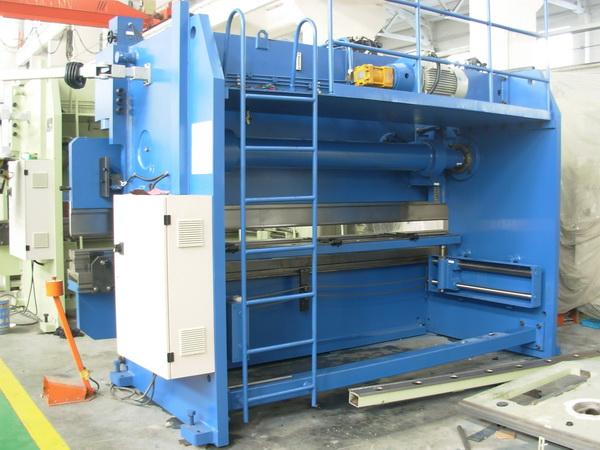

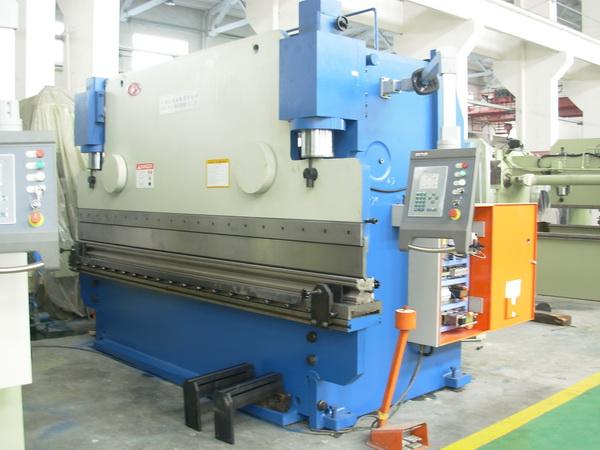

Machine picture:
