Foot Operated Hydraulic Shearing Machine Electric Metal Shear

sell hydraulic shearing machine,tandem press brake machine,sheet metal press brake,sheet cutting machine


Describe:

This machine is swing beam shearing machine, all steel welded structure,

stress relief, steady and reliable operation.

the gap between upper blade and down blade is manually adjusted by handle

with high uniformity.

Protection fence and the electric interlock to ensure the operation safety.

and we also can add 2 micro safety switches.

The closed loop control system that consists of CNC system and position

coder features fast response speed, high precision, and exceptional stability

and can ensure.

the accuracy of displacement of back gauge. Moreover, CNC system has

the accessory functions of compensation and automatic check.

hydraulic transmission, high rigidity, nitrogen return stroke, reliable performance,

Matching light projective line, easy to lineation shear.

back gauge position and shear times can be displayed on the screen.

There are numeric display of back gauge size and shearing times.

More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039

Technical Parameter:

Construction:

Hydraulic top-drive, steadiness and reliability

Steel-welded construction, vibration to eliminate stress, with high strength and

good rigidity

Mechanical stop, steel torsion bar to maintain synchronization, high precision

Motorized-adjusting device of back gauge and ram's stroke, fine adjusting by

hand wheel, numerical display

Travel limit protection, full machine guarding with safety interlocker

Standard Configuration:

Optional equipment:

1. additional control system: E21,DAC-310 system and DATC660
2. screw of bakc gauge adopt ball screw
3. larger throat gap,
4. stainless steel blade H13
5. rear light curtain protection device
6. central motorised lubrication system

7. imported pump and vlave



Enclosed Accessory:


• Front arm support, 2 pieces
• Anchor bolt, 4 pieces
• Nut, some pieces
• Washer, some pieces
• Oil gun, 1 piece
• Foot pedal 1 piece

Packaging & Delivery:

Packaging Details: Plastic-film, wood package or any other packing that customer need.

Delivery Detail: about 30 days after deposit

 download brochure here

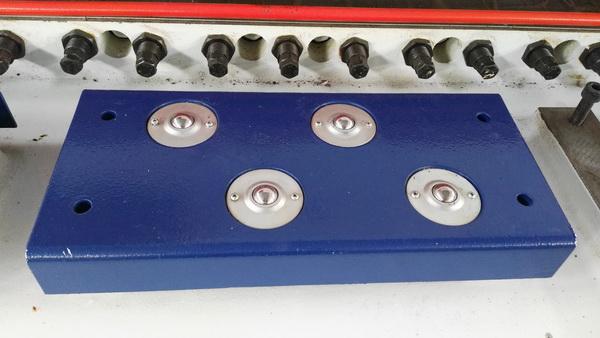

Machine picture:
