low price for the sheet metal press brake/ plate press brake/ sheet bending machine/shearing machine
WC67K-100/4000 sheet press brake Featur
- 135T press brake machine with Total steel welded structure and stress elimination by vibration
- High mechanical strength and strong rigidity
- Ram stroke hydraulic approaching downward,stable and reliable
- DA-41 system can control the movement of ram stroke and backgauge,achieving
- the sheet metal press brake hase efficient and highly precise positioning
- Wedge compensation on top punch clamping
- Simplified top blades clamping with micro-adjustment wedges,for easy operationand high precision
- 2 Sliding front sheet support arms mounted onto T slot of the bed
- Segmented 88° top blade Solid one block four face multi V die
high precision plate press brake machineTechncial Data
| Model | WC67K-63/2500 | WC67K-80/2500 | WC67K-80/3200 | WC67K-100/2500 | WC67K-100/3200 | WC67K-100/4000 | |
| Nominal force | kN | 630 | 800 | 800 | 1000 | 1000 | 1000 |
| Length of table | mm | 2500 | 2500 | 3200 | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 2000 | 1990 | 2600 | 1650 | 2550 | 3350 |
| Throat depth | mm | 250 | 280 | 280 | 320 | 320 | 320 |
| Ram stroke | mm | 100 | 100 | 100 | 130 | 130 | 130 |
| Stroke adjustment | mm | 80 | 80 | 80 | 100 | 100 | 100 |
| Max.opening height | mm | 340 | 360 | 360 | 390 | 390 | 390 |
| Stokes | Min-1 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
| Main motor capacity | kW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Net weight | kg | 4600 | 5300 | 6400 | 7300 | 8200 | 9400 |
| Outline dimensions(L×W×H) | mm |
3100 1900 2380 |
3150 1950 2350 |
3820 1950 2350 |
3200 1960 2450 |
3790 1980 2450 |
4600 1980 2450 |
steel plate bending machine Structure
Our steel plate press brake adopts Hydraulic transmission .It is all steel
welded structure design, which can be with high strength and good rigidity.
Torsion shaft forced synchronization of mechanical limit stopper balancewith high precision.
Integrated hydraulic transmission system, large range
of speed regulation to transmission of the sliding block, stable and reliable
performance.Rear stopper and the sliding block have electrical adjustment
for their stroke with manual fine tuning and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly
to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
Multi machine combined operation is possible.
Safe guide is optional.(Protection barrier,photo-electric protection device)
Machine fitted with ATOS valves;
NOK oil sealing, SCHNEIDER electricity main parts
Standard Equipment of sheet metal press brake machinery
|
1. System intermedliate Upper clamps with Anti Wedges |
|
2. Plate Support Arams |
|
3. Powered Depth Axis |
|
4. Backstop with scale |
|
5. side guard fence and rear guard fence |
|
6. section Top and multi V groove Bottom Tooling |
|
7. Hydraulic and Electrical overload protection |
|
8. Hydraulic vlave |
|
9. Electric compenents:Telemecanique/Schneider Electrics |
|
10. Delta inverter with ball screw and polished rod with 0,05mm accuracy |
|
11. Squaring Arm and Front Support Arms |
|
12. foot switch with emergnecy |
|
13. control system DA-41 |
Quality Guarantee for new brand press brake machine
- Since press brake machine reached the agreed destination, its main parts will be
- guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
- We take charge of all troubles caused by plate rolling machine's fault and repair
- according to the regulation
- stipulated by original plants. Factors not accordance with the regulation of original
- plantssuch as daily consumed components, wrong operating, lack of maintenance
- are not included in the quality guarantee.
download brochure here

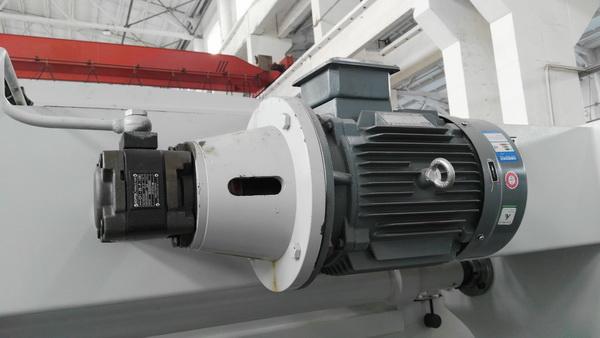

Machine picture
