2mm Stainless Steel Bending Mould Customized 3100mm Length CNC Press Brake Tooling

providing AMADA type press brake tooling, press brake die, bending machine tools, punching die, shear blade.

Feature of press brake up punch &bottom die:

the press brake toolingis are very popular in metalworking market for bending metal sheets

Various model of bending 4-40mm thickness and 1000-9000mm length.

Steel welded construction, vibrating aging function

Servo backgauge and RV working table comensation is optional

Motorized back gauge and cutting number can digital readout ,E10 or CNC100

Power break protection device to guarantee safety during maintenance

Debug and goodafter-sales service

Character:

standard upper and lower dies adopt advance technology to process.

the materail of the press brake die is 70 #, 42CrMo.

the heat hardening is HB 220-300, HRC45-55.

the raw material is forged to produced.

Description of sheet emtal press brake tools:

Application of CNC press brake metrix:

these upper punching and bottom die are used to the press brake machine, it use to

bending the sheet metal.

it can bending different angle

upper punchign and bottom die can have section to install on the press brake to

bending the different cabinet, box.

Our service:

Any question about press brake tooling&dies should be replied in 24 working hours

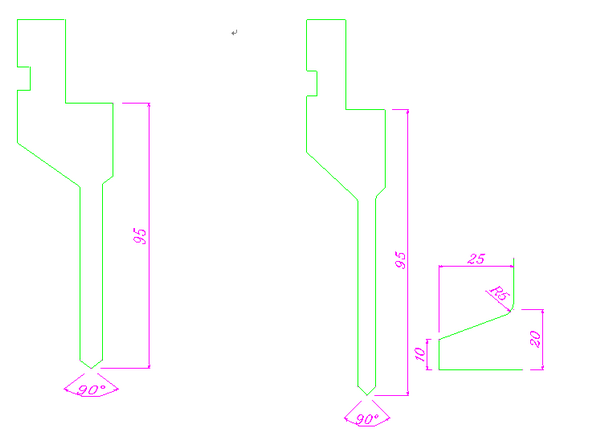

Experienced staffs will provide professional and technical suggestion on press brake

tooling drawing

Customized design is available OEM&ODM

Increase the order quality or long-term cooperation in the future will get our discount.


download brochure here:

More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039

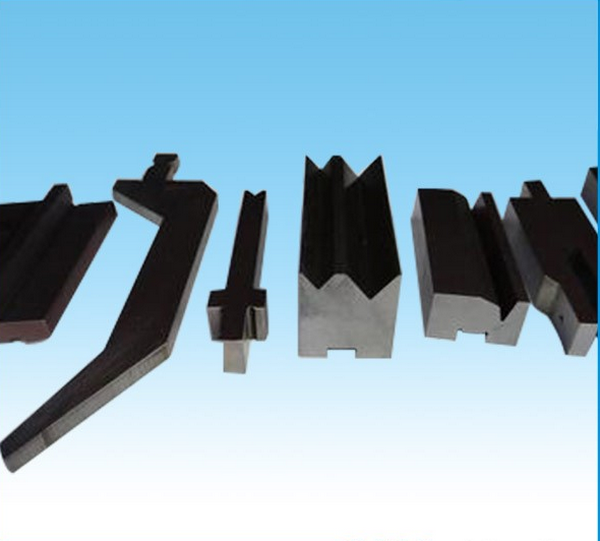

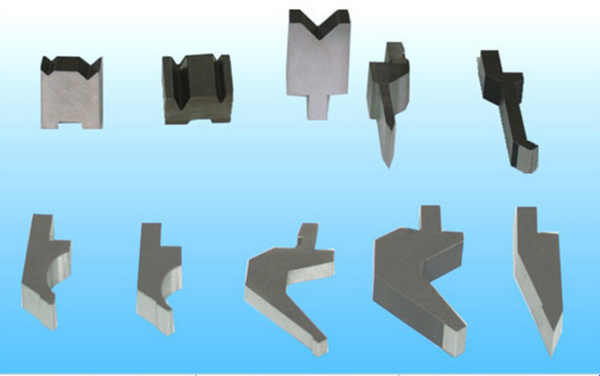

 Picture of press brake metrix & punch:
