Hydraulic Metal Shear NC Hydraulic Shearing Machine Metal Cutting Shear

buy hydraulic shearing mahine/guillotine shear/press brake machine/cutting machine/hydraulic bedning machine

 Product Description:
We have crafted a strong position in the industry by offering a premium quality collection of

Hydraulic Shearing Machine to our customers. The offered products have Variable Rake Angle

Adjustment with Selector Switch, Hydraulic Hold-Downs, Rapid Blade Clearance Adjustment and

Front Operator Control Box. Additionally, customers can buy these machines at competitive prices.

Features:
Mono Block Welded Steel
Easy to use and convenient to operate
Electronically adjustable rake angles
Rapid cutting facility
Adjustable cutting clamp
Activation from console and movable foot cut switch
Sheet clamped hydraulically before cut starts
Stroke length – position can be set for short jobs

Salient Features:

Optimum Shearing Condition by fixed rank angle
Rapid Blade Clearance Adjustment by Livers

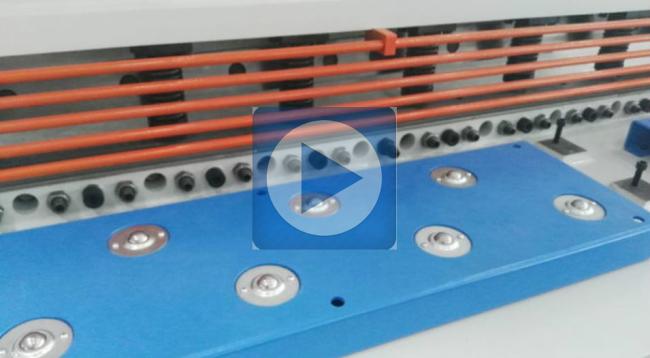

Hydraulic Hold Down to Avoid Slippage of Sheets

Standard Accessories:

 Inch and single mode can be select by Switch.
Hydraulic hold Downs Rapid Blade Clearance Adjustment.
Front Gauge Main electric control Panel.
Front Operator Control Box.
Movable foot Switch.
Four Edge Interchangeable Shear Blade Operation and maintenance manual book.

Electrical Control Elements:

The Electrical Control Panel is located on the Left Hand Side of the Machine. It is assembled from the internationally

reputed parts for consistent performance, reliability and availability, if needed to be

replaced. It is wired Cleanly and Labelled/Ferruled properly as per the International practices to help

easily locate any fault and replace components convenaiently.

Hydraulic System

simple hydraulic system, stable and reliable, it is easy to operate and maintain.

over load protection,the cutting force can be adjsuted stepless.

the cutting force be showed on the pressure gauge

Technical Parameter:

Construction:

Hydraulic top-drive, steadiness and reliability

Steel-welded construction, vibration to eliminate stress, with high strength and

good rigidity

Mechanical stop, steel torsion bar to maintain synchronization, high precision

Motorized-adjusting device of back gauge and ram's stroke, fine adjusting by

hand wheel, numerical display

Travel limit protection, full machine guarding with safety interlocker

Standard Configuration:

Optional equipment:

1. additional control system: E21,DAC-310 system and DATC660
2. screw of bakc gauge adopt ball screw
3. larger throat gap,
4. stainless steel blade H13
5. rear light curtain protection device
6. central motorised lubrication system

7. imported pump and vlave


Packaging & Delivery:

Packaging Details: Plastic-film, wood package or any other packing that customer need.

Delivery Detail: about 30 days after deposit
