Electric Hydraulic Speed Reducer Gearbox With Low Carbon High Alloy Steel Gear Material

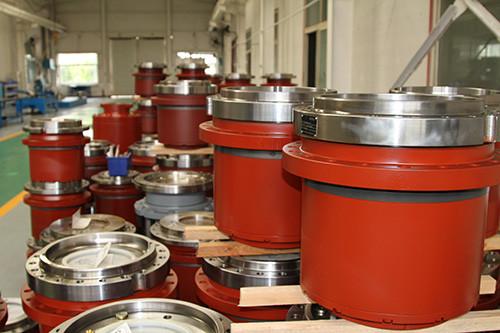

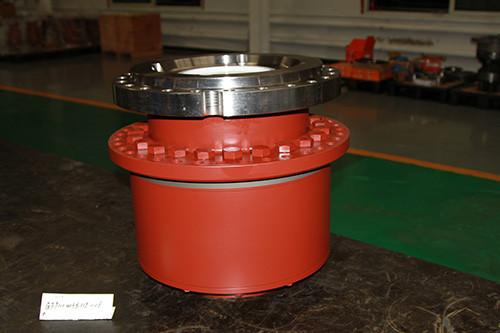

Winch Reducer
Technical Specification of Winch Reducer
| Model Number | Max Output Torque | Transmission Ratio | Weight(without oil, motor, drum) |
| WLT7W | 4500 | 30.93; 43; 51; 62.56 | 55 |
| WLT9W | 6200 |
16.5; 19.25; 24.2; 28.16; 33.41; 39.34; 47.6; 55.27 |
80 |
| WLT13W | 9500 |
16.27; 19.9; 22.62; 26.43; 32.14; 37.57; 45.42; 53.95 |
102 |
| WLT17W | 14000 |
16.27; 19.9; 22.62; 26.43; 32.14; 37.57; 45.42; 53.95; 64.24; 70.24; 77.95; 89.22; 103.69; 121.03; 150.5; 170.24 |
105 |
| WLT23W | 16000 | 18.56; 20.35; 22.66; 25.75; 30.06; 48.18 | 120 |
| WLT24W | 19000 |
36.97; 44.7; 90.13; 102.6; 116.9; 120.5; 137.2;173.7; 193.3; 209.3; 221.1; 137.6; 169.86 |
130 |
| WLT26W | 18000 | 30.36; 36.8; 42.87; 50.52; 54.20; 62 | 165 |
| WLT34W | 25000 | 30.36; 36.8; 42.87; 50.52; 54.20; 62 | 175 |
| WLT36W | 26000 |
32.57; 38.43; 47.21; 66.96; 79.36; 87.78;100.02; 116.55; 131; 138.82; 161.26; 269 |
185 |
| WLT40W | 27000 | 35.88; 41.04; 48.28; 59.13 | 200 |
| WLT50W | 37500 |
36.8; 45.13; 80; 87.59; 91.12; 99.75; 125.66; 146.39; 155.94; 177.48 |
250 |
| WLT60W | 42500 |
33.03; 39.41; 63.77; 76.55; 86.46; 94.80; 105.53;111.93; 119.93; 136; 139.86; 150.53; 169.89 |
260 |
| WLT80W | 67000 |
61.28; 76.68; 79.15; 87.64; 98.97; 110.86;126.94; 49.92; 164.31; 185.43 |
380 |
| WLT110W | 100000 |
79.5; 87.6; 95.8; 104.2; 114.8; 128.6; 147.2; 164.3; 173.9; 196.8; 215 |
425 |
| WLT160W | 140000 |
93.7; 101.6; 111.3; 133.1; 162.8; 191.9; 210.8; 251 |
680 |
| WLT220W | 200000 |
105.8; 119; 139.6; 176.6; 209; 230.4; 259.4; 299.9; 239.5; 360.6 |
820 |
Special Features
1.High-duty planetary gearbox of modular construction
2.compact, space-saving, two-or three-stage planetary gear design
3.robust bearing system absorbing the forces exerted by the ring gear
4.simple mounting
5.integrated multiple-disk holding brake
6.low-noise running
7.high efficiency
8.long service life
9.easy oil change
Product Characters
1. Ring gear and Input spline housing: All nitriding in Infinity;
2. External gear: Grinding gear with drum teeth;
3. Sealing components: All imported;
4. Standard components: Provided by designated supplier of Rexroth or foreign brand;
5. Material: High quality alloy materials, special heat treatment process;
6. Processing precision: Equal with foreign product;
7. Excellent equipment: All NC machining, including complete set testing equipment and high precision detecting, more than 80 sets equipments. Optimal in domestic industry;
8. Strict quality control: TS16949, ISO9001, ISO14001;
FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
After-sale service
1.We can design and manufacture the product and send the technical personnel to guide the installation of equipment at customer's workplace according to the requirements of our customers
2.If there is anything wrong with the products you can contact us in any time ,we'll send the customer's feedback to technology department and return the results to customers as soon as possible.
