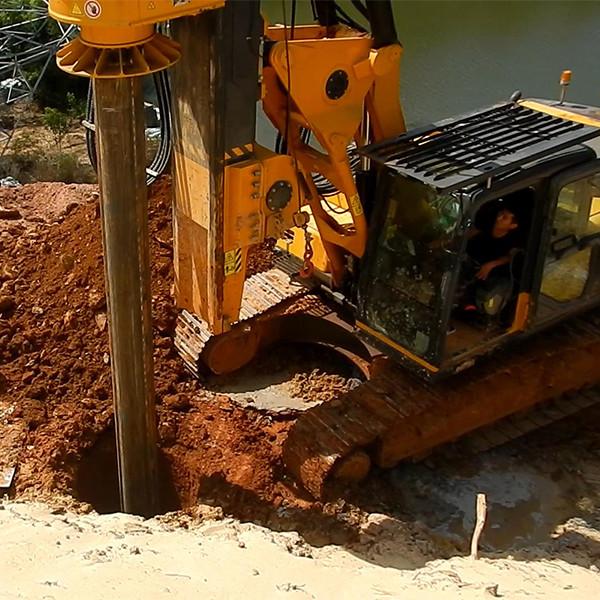

KR150C Rotary Drilling Rig With Caterpillar Chassis Depth 52 M diameter 1500 mm torque 50 kN.m
| Technical Specification of KR125C rorary drilling rig | |
| Torque | 150 kN.m |
| Max. diameter | 1500 mm |
| Max. drilling depth | 52m |
| Speed of rotation | 7~26 rpm |
| Max. crowd pressure | 100 kN |
| Max. crowd pull | 150 kN |
| Main winch line pull | 110 kN |
| Main winch line speed | 78 m/min |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 60 m/min |
| Stroke(crowd system) | 3200 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 5° |
| Max. operating pressure | 35MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 2.8 km/h |
| Traction force | 400 kN |
| Operating height | 18000 mm |
| Operating width | 4300 mm |
| Transport height | 3500 mm |
| Transport width | 3000 mm |
| Transport length | 13970 mm |
| Overall weight | 43t |
| Chassis | |
| Type | CAT323D |
| Engine | CAT-C7.1 |
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
