wire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lock
1, The specification of the product
| Basic size information | |||
| Color | white | ||
| Material | PA66 | ||
| Pitch | 1.0mm | ||
| Terminal material | phosphor bronze | ||
| Finish terminals | tin-plated | ||
| Circuits(positions) | 2pins to 20pins | ||
| Wire Insulation Diameter | 0.92mm Max. | ||
| Part No. | A1017HA-NP | ||
| Electrical properties | |||
| Current Rating | 1A AC, DC | ||
| Voltage Rating | 125V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 100mΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||

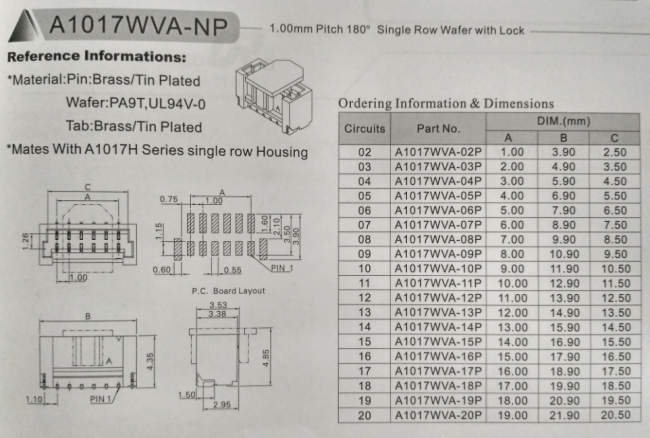

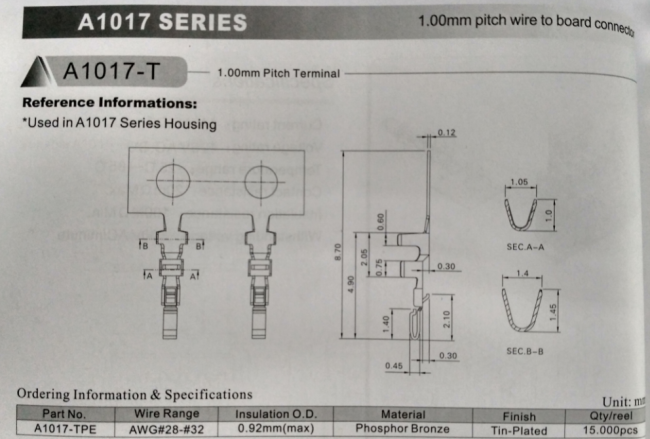

2, Related drawing and report
A1017 series wire to board connector
3, FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.
Q: Does your products print exactly the same as original?
A: Compatible products(high quality equivalents with our own brand) were known for its favourable prices and accurate size as originals.
Q: What is your MOQ for sample order?
A: All size sample orders are welcome. we do believe your idea to increase order gradually.
Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
