5.08mm Pitch Female Connector Male Crimp Housing 4 Circuits with tin-plated Brass Contact
Female Brass 5.08mm pitch connector , Crimp Style Connector Single Row Housing
1, Detailed specification table of product
| Detailed information | ||||
|
Basic information |
Type | Housing | ||
| Gender | Female | |||
| Circuits | 4 positions | |||
| Insulation O.D. | 3.10mm(max) or 2.5mm(max) | |||
| Mating lock | Without | |||
| Finish terminal | Tin-plated | |||
| Suitable terminal | C5080T-M-A | |||
| Suitable housing | C5080HF | |||
| Electrical properties | Current Rating | 10A AC, DC | ||
| Voltage Rating | 250V AC, DC | |||
| Contact Resistance | 10mΩ Max | |||
| Insulation Resistance | 1000MΩ Min | |||
| Withstanding Voltage | 1500V AC/minute | |||
| Mechanical properties | Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 2.0kgf (Max.) | |||
| Terminal/Housing Retention Force |
3.00kgf (Min.) |
|||
| Pin Retention Force | 2.00kgf (Min.) | |||
| Other information please kindly check the following picture. | ||||
2, Introduction for this series products
Please kindly notice that the C5080 series product, you can buy it as a set, then we will offer you reasonable price.
| C5080 series product | ||
| Terminal | C5080F-T and C5080M-T-A | |
|
Connector |
Male housing | C5080HF-04P |
| Female housing | C5080HM-04P | |
| Wafer | Vertical mouting type | C5080WV-04P |
3, Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.

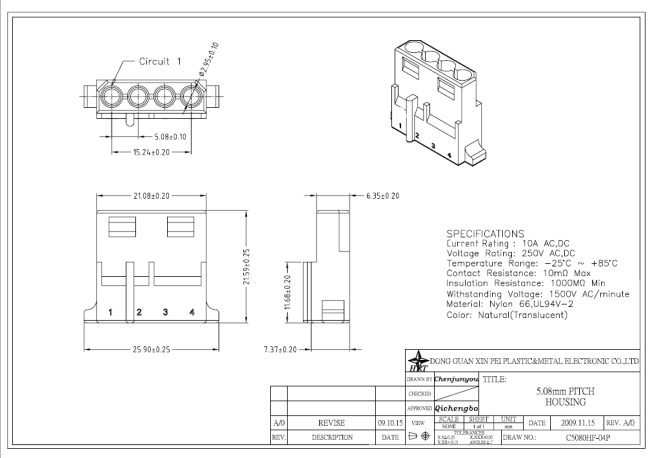

Dimension drawing
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
