3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze
1, Detailed part information as below
1. Basic information:
- Color: Black
- Housing Material: Nylon66
- Flammability: 94V-0/2
- Pitch: 3.00mm
- Circuits: 2 to 12 positions
- Insulation O.D.: 1.85mm max
- Mounting type: wire to wire
- Application: Power, wire to wire
- Terminal materials: Phosphor bronze
- Finish terminal: Tin-plated or gold-flash
- Terminal Package: 10Kpcs/reel
- Suitable terminal: C3030M-T
- Mates housing: C3030HF series Single row
- Terminal processing method: E-stamping before tin-plated
2. Electrical characteristic:
- Current Rating: 5A AC DC
- Voltage Rating: 250V AC, DC
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 1000mΩ
- Withstanding Voltage: 1500V AC/minute
3. Mechanical characteristic:
- Temperature Range:-25°C ~+85°C
- Terminal Insertion Force: 1.50kgf (Max.)
- Terminal/Housing Retention Force: 2.50kgf (Min.)
- Pin Retention Force: 1.50kgf (Min.)
- Latch Yield Strength: 7.0kgf (Min.)
Other information please kindly check the following picture.
2, Introduction for this series products
Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.
| C3030 series product | ||
| Terminal | C3030F-T-A and C3030M-T | |
| Connector | Male housing | C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP |
| Female housing | C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP | |
|
Wafer |
Vertical type | C3030WV-F-NP &C3030WV-F-2XNP |
| Right angle type | C3030WR-F-XP & C3030WR-F-2XNP | |

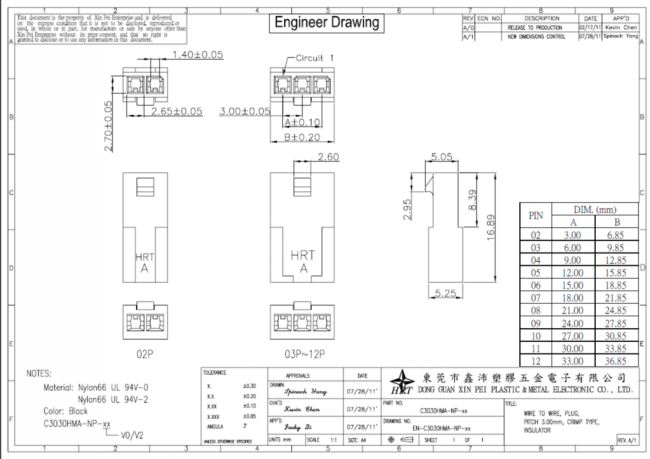

3, Corresponding engineering drawing & testing report
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#20 | 6.0kgf (Min.) |
| AWG#22 | 4.0kgf (Min.) | |||
| AWG#24 | 3.0kgf (Min.) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 2.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.50kgf (Min.) | |
| 5-6 | Latch Yield Strength |
Mate connectors and pull apart until both latches break at the speed rate of 25±3mm / minute |
7.00kgf (Min.) | |
| 5-7 | Panel Mount Retention Force | Insert the housing into panel cut out, barbs break at the speed rate of 25±3mm / minute. |
Single Row(W-W) 8.0kgf (Min.) Dual Row(W-W) 16.0kgf (Min.) |
|
| 5-8 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 20mΩ (Max.) | |
