2.0mm Pitch Wire To Wire Connector With Tinned Brass Male Terminals Female Contact
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Termination Interface Style | Crimp or compression | ||
| Processing methods | E-stamping before tin-plated | ||
| Insulation O.D. | 1.40mm(Max) | ||
| Part No. | C2003F-TPE;C2003M-TPE | ||
| Application | Power, wire to wire | ||
| Electrical properties | |||
| Current Rating | 2A AC, DC | ||
| Voltage Rating | 125V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 1000MΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. |
|||
2, Related drawing and report

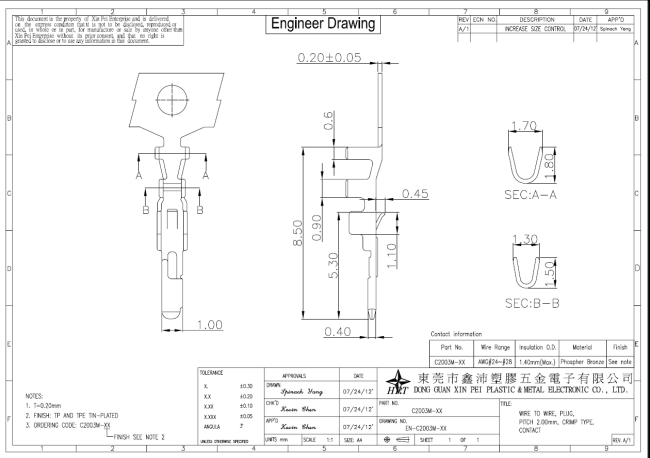

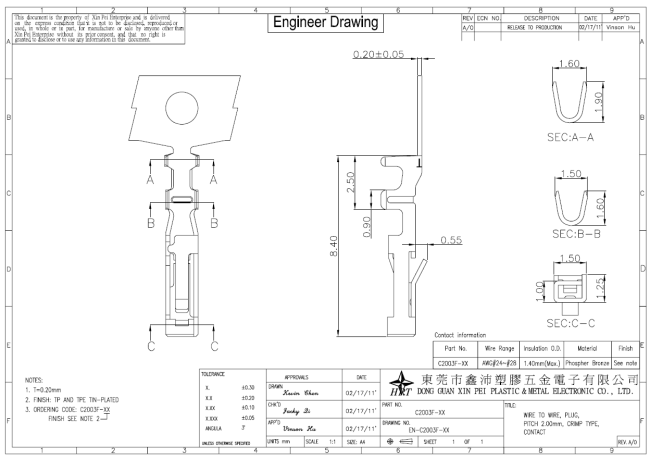

The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw actuator at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#24 | 3.0 kgf (Min.) |
| AWG#26 | 2.0 kgf (Min.) | |||
| AWG#28 | 1.0 kgf (Min.) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50 kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 1.20 kgf (Min.) | |
| 5-5 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 40mΩ (Max.) | |
| 5-6 | Vibration |
Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) |
|
| 5-7 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
3,Our advantage
1. We can ensure the fast delivery. The stock goods will be delivered within three days and the customized goods will be delivered within five days as soon as we checked the payment finished.
2.The products are all environmental safe products, no smell and non-fading.
3. All kinds of products passed ROHS,REACH export
4.We are glad to make samples according to your drawings and specifications.
5.Used in the most of home applicances,computer,PCB,LCD,TV
6.Inspections:100% tested before delivery
7.Available for ODM/OEM order
8.Please contact us now, so we can offer you the best quality,competitive price and timely delivery.
