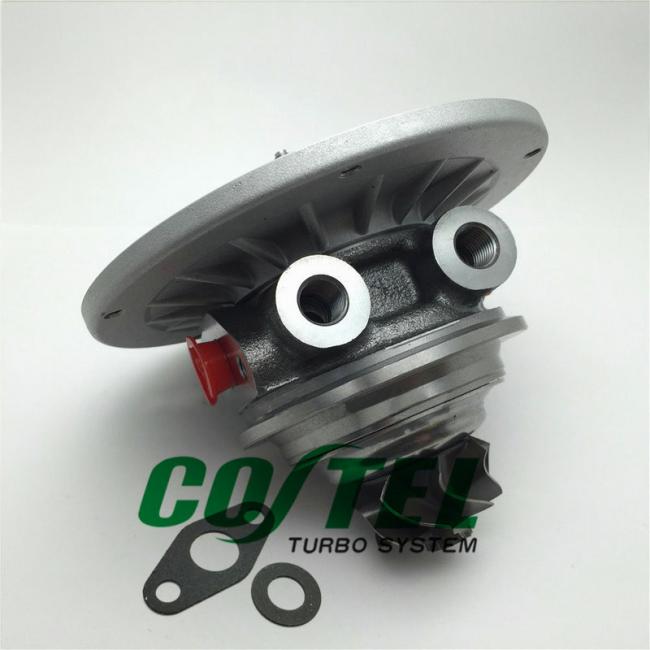

ISUZU Trooper HOLDEN Jackaroo OPEL Monterey engine 4JX1T turbo core VA430015 VICF VICF VIDS 8972503642 8971371098
ISUZU Trooper HOLDEN Jackaroo OPEL Monterey engine 4JX1T turbo core VA430015 VICF VICF VIDS 8972503642 8971371098
Specifiions
| Part Number | VA430015 |
| Previous Part Number | VK430015, VA430015, VB430015, VC430015, VE430015, VF430015, VG430015, VH430015, VI430015, VJ430015, VL430015 |
| V-SPEC. | VICF, VICF, VIDS |
| OE number | 8972503642, 8972503640, 8971371098, 8971371099, 8972503641, 860065, 98102371, 97376273, 897376273, 8-97137-109-3, 8-97137-109-4, 8-97137-109-5, 8-97137-109-7, 8-97137-109-8 |
| Year | 2000- |
| Description | Isuzu Trooper, Opel Monterey Mk II |
| CHRA | VAX50016 (NZ870470) |
| Turbo Model | RHF5-64006P13.5NHBRL382CAZ |
| Engine | 4JX1TC |
| Displacement | 3.0L, 2999 ccm, V4 Cylinders |
| KW | 118/159/160 |
| Fuel | Diesel |
| Angle α (compressor housing) | 114� |
| Angle β (turbine housing) | 319� |
| Repair Kit | NH459806 |
| Turbine Housing | NH459113 |
| Compressor Cover | NH453317 |
| Turbine Housing AR | 13.5 |
| Actuator | NH961581 |
| Gasket (turbine inlet) | 2455169 |
| Gasket oil inlet | 1203715 |
| Gasket (oil outlet) | 2445067 |
| Gasket (turbine outlet) | 2445217 |
| Manufacturer | IHI |
Appliions
2000- Isuzu Trooper with 4JX1TC Engine
1999-04 Jackaroo 3.0L with 4JX1TC Engine
1998- Opel Monterey Mk II with 4JX1TC Engine
Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1.By sea 2.By air cargo 3.By express service.
Delivery term
Our extensive stock of turbochargers and CHRA allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
1.50-150 pcs--7-15 days 2.150-300 pcs--15-25 days 3.over 300 pcs -- 30 days.
COSTEL CHRA Core Assemblies
What material costel use for key parts:
A, The turbine wheels casting is made from fresh high nickel(>73%) alloy Inconel 713,the equivalent being K418;
B, The compressor wheels casting made from CW355;
What balance machine use:
A, All cartridges are balanced with Turbo Technics VSR or schenck machine.
B, All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.
Products Coverage:
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
