Deutz Industrial Engine Gen Set BF6M1013FC S200G Turbo 318815 04259318KZ, 4259318KZ, 20571676 318754
Deutz Industrial Engine Gen Set BF6M1013FC S200G Turbo 318815 04259318KZ, 4259318KZ, 20571676 318754
Specifiions
| Part Number | 318815 |
| OE number | 04259318KZ, 4259318KZ, 20571676 |
| Year | 2001- |
| CHRA | 318911 $998.81 NEW IN STOCK |
| Description | Industrial Engine |
| Turbo Model | S200G-76H24AEFGM0.85DA11 |
| Engine Model | BF6M1013FC |
| Manufacturer Part Number | 318754 |
| Displacement | 7.15L, 7150 ccm |
| KW | 200/268 |
| RPM Max | 2300 |
| Fuel | Diesel |
| Angle α (compressor housing) | 95� |
| Angle β (turbine housing) | 356� |
| Bearing Housing | 317952 $268.19 |
| Turbine Wheel | 318900 $427.65 |
| Comp. Wheel | 169937 $162.23 |
| Back plate | 167744 $83.38 |
| Heat shield Number | 167997 $44.74 |
| Repair Kit | 318383 $97.60 |
| Turbine Housing | 318893 |
| Compressor Cover | 318762 |
| Actuator | 318291/310618 |
| Settings Waste gate (pressure) | 1.558-1.627 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 409039-0000 (2405022) $13.52 |
| Gasket (turbine outlet) | 210245 $4.48 |
| Gasket (oil outlet) | 210021 (311496, 148062, 311496) $3.32 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS UK |
Appliions
12001- Deutz Industrial Engine Gen Set BF6M1013FC

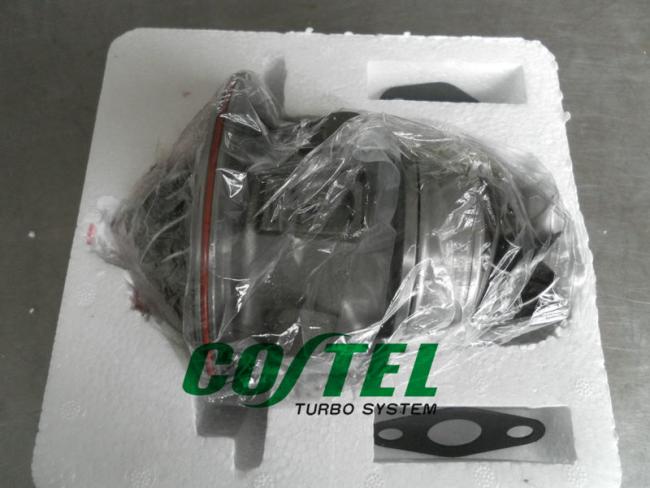

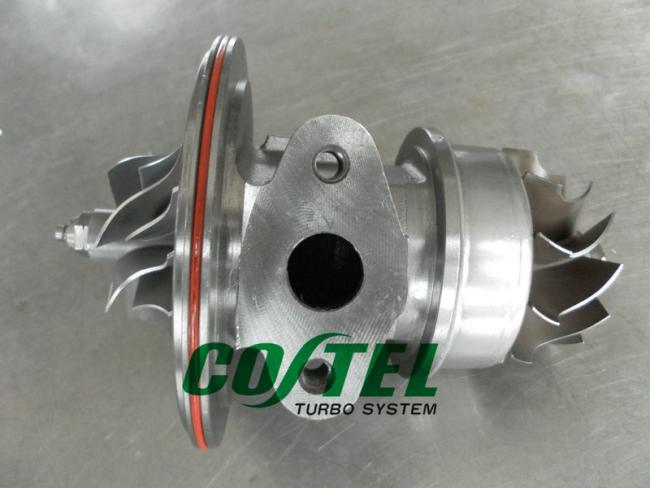

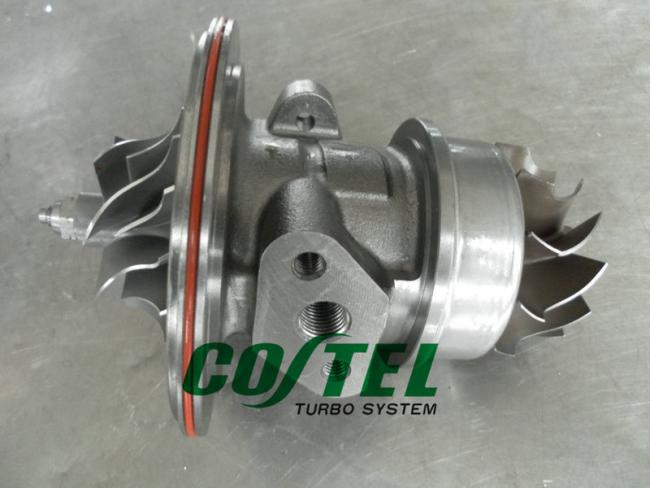

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1.By sea 2.By air cargo 3.By express service.
Delivery term
Our extensive stock of turbochargers and CHRA allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
1.50-150 pcs--7-15 days 2.150-300 pcs--15-25 days 3.over 300 pcs -- 30 days.
COSTEL CHRA Core Assemblies
What material costel use for key parts:
A, The turbine wheels casting is made from fresh high nickel(>73%) alloy Inconel 713,the equivalent being K418;
B, The compressor wheels casting made from CW355;
What balance machine use:
A, All cartridges are balanced with Turbo Technics VSR or schenck machine.
B, All wheels are balanced with the Schenck automatic balancing centre incorporating air bearings to achieve lowest residual balance.
Products Coverage:
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
