2000-05 Audi, Volkswagen Golf IV with 1.8L-5V langs,along Engine K03 Turbo 53039880058 53039700058 53039700053
2000-05 Audi, Volkswagen Golf IV with 1.8L-5V langs,along Engine K03 Turbo 53039880058 53039700058 53039700053
Specifiions:
| Part Number | 53039880058 |
| Previous Version | 5303-988-0058, 5303 988 0058, 53039880053 |
| OE number | 06A145704S, 06A145713L, 06A145713B, 06A145713M |
| Year | 2000-05 |
| Description | AUDI, SKODA, VM, VW |
| Manufacturer Part Number | 53039700058, 5303-970-0058, 5303 970 0058, 53039700053 |
| CHRA | 53037100516 (5303-710-0516) |
| Turbo Model | K03-2075EYD5.88KCAXH |
| Engine | 1.8L 5V langs/along, 1.8L-5V transverse |
| Displacement | 1.8L, 4 Cylinders, 1781 ccm |
| KW | 110/150 HP |
| RPM Max | 5500 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 266.5� |
| Angle β (turbine housing) | 183.5� |
| Bearing Housing | 53041010017/53041500017 |
| Turbine Wheel | 53031205037/53031205023 |
| Compressor Wheel | 53041232029 |
| Back plate, Seal plate | 53041515712/53041515712a |
| Heat shield Shroud | 53031652000 |
| Service Kit, | 53037110001 |
| Turbine Housing | 53031009078 |
| Compressor Cover | 53041015105 |
| Turbine Housing AR | 5 |
| Actuator | 58251104072 |
| Waste gate adjustment (pressure) | 0.480 bar |
| Settings Waste gate (lift shaft) | 4.00 mm |
| Gasket (turbine inlet) | 210337 |
| Gasket (turbine outlet) | 210838 |
| Gasket (oil outlet) | 210317 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Appliions
2000-05 Audi A3 with 1.8L-5V langs,along Engine
2000-05 Skoda Octavia with 1.8L-5V langs,along Engine
2000-05 Volkswagen Golf IV, Bora with 1.8L-5V langs,along Engine
2000-05 Volkswagen New Beetle with 1.8L-5V langs,along Engine

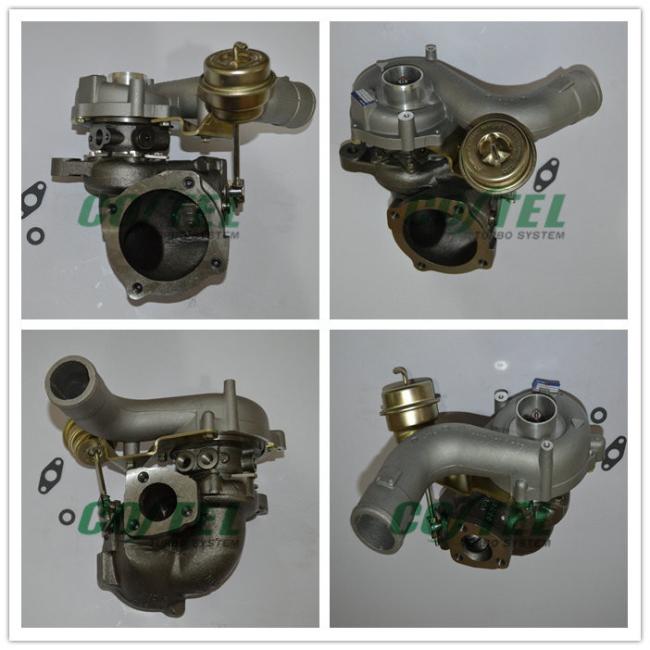

Pictures:
