Otosan Commercial Vehicle Transit Van with YORK Engine GT1549S Turbo 452213-0003 452213 Transit van Commercial
Otosan Commercial Vehicle Transit Van with YORK Engine GT1549S Turbo 452213-0003 452213 Transit van Commercial
Specifiions:
| Part Number | 452213-5003S |
| Previous Version | 452213-0001, 452213-0002, 452213-0003, 452213-3 |
| OE Number | 954T6K682AA, X4T6K682AA, Y4T6K682AA |
| Year | 1997-00 |
| Description | Transit van Commercial |
| CHRA | 433289-0087 (433289-5087S, 1102015948) |
| Turbo Model | GT1549S |
| Engine | YORK |
| Engine Manufacturer | Otosan |
| Displacement | 2.5L, 2500 ccm, 4 Cylinders |
| KW | 100/160 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing | 270� |
| Angle β (turbine housing) | 180� |
| Bearing Housing | 435793-0002/713782-0002 NEW IN STOCK |
| Turbine Wheel | 433165-0001/433165-0007/433298-0001/433298-0030/434713-0001/434713-0005/434713-0015 NEW IN STOCK |
| Comp. Wheel | 436132-0001/436132-0002/703928-0002 NEW IN STOCK |
| Back plate | 700593-0003/703682-0056/721085-0001 NEW IN STOCK |
| Heat shield Number | 434302-0001 NEW IN STOCK |
| Repair Kit | 732252-0001 NEW IN STOCK |
| Thrust Kit GT15 | NEW IN STOCK |
| Turbine Housing | 434411-0008 |
| Compressor Cover | 435349-0013 |
| Actuator | 434133-0019 |
| Setting Waste gate (pressure) | 0.32-0.37 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 210293 (Inox Steel) |
| Gasket (turbine outlet) | 210296 (Inox Steel) |
| Gasket (oil outlet) | 210243 (2455001, Non Metallic) |
| Replaced By | 452213-0003 |
| Manufacturer | Honeywell-Garrett |
Appliions
1997-00 Otosan Commercial Vehicle Transit Van with YORK Engine

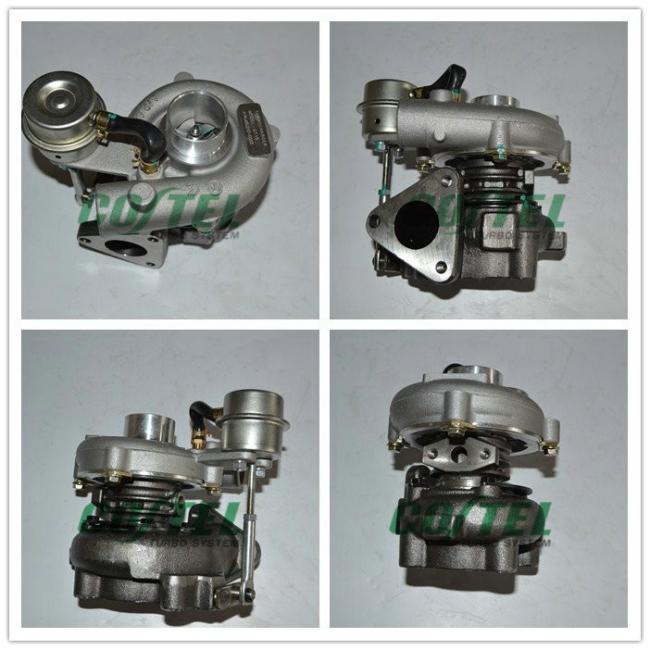

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
