Hyundai Chrorus Bus, Mighty Truck Engine D4AE turbo charger GT1749S 471037-0001 28230-41421 471037
Hyundai Chrorus Bus, Mighty Truck Engine D4AE turbo GT1749S 471037-0001 28230-41421 471037 Turbo
Specifiions:
| Part Number | 471037-5002S |
| Previous Version | 471037-0001, 471037-0002 |
| OE number | 2823041421, 2823041422, 28230-41421, 28230-41422 |
| Year | 1895-98 |
| Description | Hyundai Chrorus Bus, Mighty Truck |
| CHRA | 433352-0019 |
| Turbo Model | GT1749S |
| Engine | D4AE |
| Engine Manufacturer | Hyundai |
| Displacement | 3.3L, 3300 ccm, 4 Cylinders |
| KW | 74 |
| Angle α (compressor housing) | 90� |
| Angle β (turbine housing) | 280� |
| Bearing Housing | 436320-0001 |
| Turbine Wheel | 434714-0003 |
| Comp. Wheel | 436320-0001 |
| Back plate | 433259-0002 |
| Repair Kit | 732252-0001 |
| Turbine Housing | 435788-0031 |
| Compressor Cover | 435791-0036 |
| Turbine Housing AR | 0.56 |
| Actuator | 451792-0001 |
| Settings waste gate (pressure) | 0.880 - 0.920 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 210603 |
| Gasket (turbine outlet) | 210604 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Appliions
1995-98 Hyundai Chrorus Bus, Mighty Truck Engine D4AE

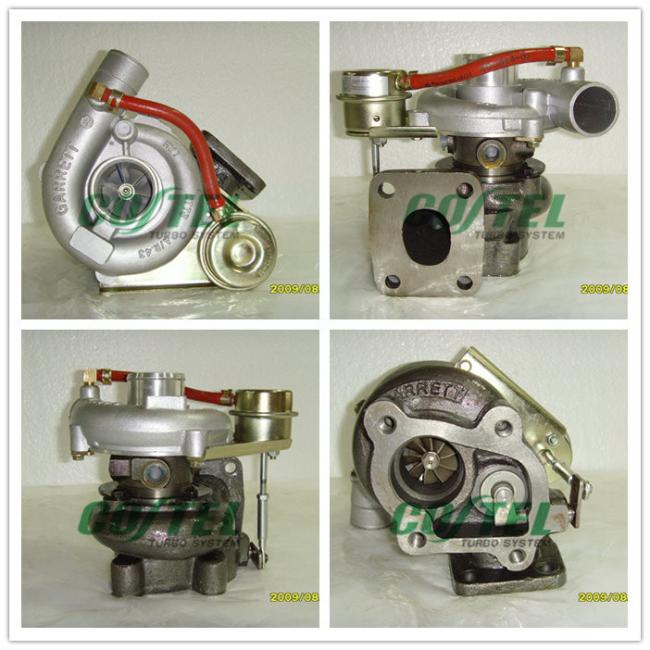

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
