Renault Avantime Vel Satis Espace Laguna dCi with G9T 700, G9T 702 Engine GT1852V 718089 718089-0007 718089-0006
Renault Avantime Vel Satis Espace Laguna dCi with G9T 700, G9T 702 Engine GT1852V 718089 718089-0007 718089-0006
Specifiions:
| Part Number | 718089-5008S |
| Previous Version | 718089-0001, 718089-0002, 718089-0003, 718089-0004, 718089-0005, 718089-0006, 718089-0007, 718089-5007S |
| OE Number | 8200267138, 8200447624A, 7701475282, 8200447624, 7711134877, 8200683860, 7701476620, 8200267138A, 8200221363 |
| Year | 2001-06 |
| Description | Espace, Avantime, Vel Satias dCi |
| CHRA | 703890-0138 (S2) |
| Turbo Model | GTA1852V, GT1852V |
| Engine | G9T 700, G9T 702, G9T702 Euro-3 |
| Engine Manufacturer | Renault |
| Displacement | 2.2L, 2200 CCM, 4 Cylinders |
| KW | 98/110/150 |
| RPM Max | 4250 |
| Fuel | Diesel |
| Angle α (compressor housing) | 90� |
| Angle β (turbine housing) | 157� |
| Bearing Housing | 722282-0091 (S2) |
| Turbine Wheel | 704580-0008/704580-0003 |
| Comp. Wheel | 702492-0011 |
| Back plate | 701335-0004 |
| Heat shield Number | 433112-0001 |
| Repair Kit | 732252-0001 |
| Nozzle Ring Assembly | 717505-0001/704013-13 |
| Turbine Housing | 715697-0002 |
| Compressor Cover | 725381-0004 |
| Turbine Housing AR | VNT2 |
| Actuator | 434855-0074 |
| Settings waste gate (pressure) | 0.197-0.203/0.520-0.560 bar |
| Settings Waste gate (lift shaft) | 1.0-3.5/0.2 mm |
| Gasket (turbine inlet) | 210587 |
| Gasket (turbine outlet) | 210588 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Appliions
2003-06 Renault Vel Satis dCi with G9T 700, G9T 702 Engine
2003-06 Renault Espace dCi with G9T 700, G9T 702 Engine
2004-06 Renault Laguna dCi with G9T 700, G9T 702 Engine
2001-06 Renault Avantime with G9T 700, G9T 702 Engine

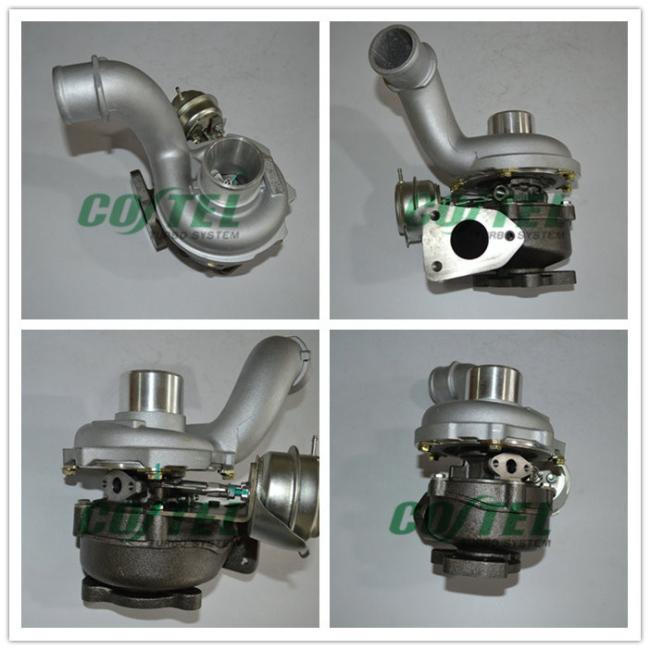

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
