Mercedes Turbo Charged Vehicles 5 Cylinders 454184-0001 454184-9001 454111-0001 454207-1
Mercedes Sprinter I 210D/310D/410D with OM602 Engine GT2538C Turbo 454207 454207-5001S 454184 6020960899, 6020960699
Specifiions:
| Part Number | 454207-5001S |
| Previous Version | 454184-0001, 454184-9001, 454111-0001, 454207-1 |
| OE number | 6020960899, 6020960699, 6020960199, 6020900880, A6020960899, A6020960699, A6020960199, A6020900880 |
| Year | 1995-97 |
| Description | Mercedes Sprinter I, Commercial |
| CHRA | 443854-0150 (443854-0156, 443854-5150S) |
| Turbo Model | GT2538C |
| Engine | OM602, OM602 DE 29 LA |
| Displacement | 2.9L, 2874 ccm, 5 Cylinders |
| KW | 75/90/102/123 HP |
| RPM Max | 3800 |
| Fuel | Diesel |
| Angle a (compressor housing) | 158� |
| Angle � (turbine housing) | 270� |
| Bearing Housing | 435209-0010 (1100025450) NEW IN STOCK |
| Turbine Wheel | 435354-0010 (Ind. 53.1 mm, Exd. 38.5 mm, 9 Blades)(1100025437) NEW IN STOCK |
| Comp. Wheel | 447449-0010 (Ind. 38.6 mm, Exd. 52.1 mm, Trm 55, 6+6 Blades) (1100025402) NEW IN STOCK |
| Back plate | 432280-0001 (1100025300) NEW IN STOCK |
| Heat shield Number | 443594-0001 (1100025341) NEW IN STOCK |
| Repair Kit | 709143-0001 (1100025761)(dynamic seal) NEW IN STOCK |
| Turbine Housing | 433077-0005 |
| Compressor Cover | 409589-0457/434804-0001 |
| Actuator | 433452-0005 |
| Turbine Housing AR | 0.46 |
| Settings Waste gate (pressure) | 1.067-1.147 bar |
| Settings Waste gate (lifting rod) | 1.00 mm |
| Gasket (turbine inlet) | 210305 (Inox Steel) |
| Gasket (oil outlet) | 210306 (Paper) |
| Manufacturer | Honeywell-Garrett |
Appliions
1995-97 Mercedes Sprinter I 210D/310D/410D with OM602 Engine
1995-97 Mercedes Sprinter I 212D/312D/412D with OM602 Engine

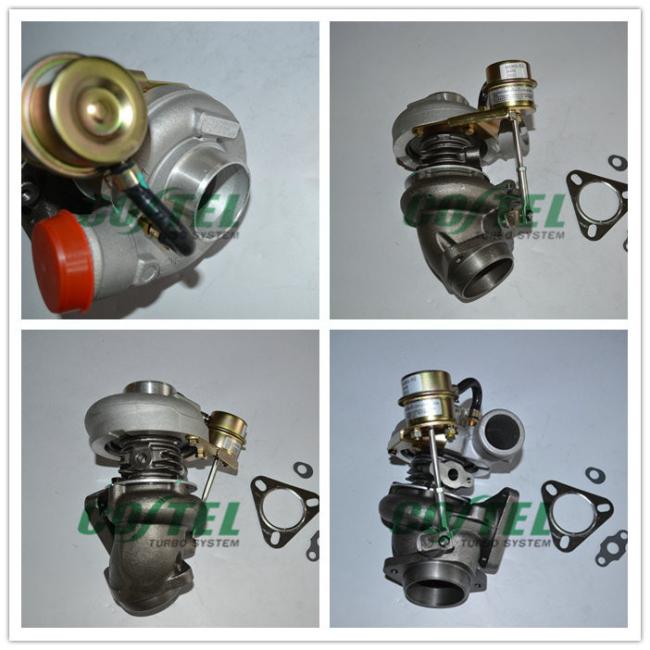

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
