RD28T Cummins Garrett Turbo , Twin Turbo Charger 11-22J00 14411-22J01 1441122J00
Nissan Patrol 2.8L TD Engine RD28T 160/GR-Y60/260 TB2527 Turbo 46594114411-22J00, 14411-22J01, 1441122J00
Specifiions:
| Part Number | 465941-5005S |
| Previous Version | 465941-0001, 465941-0002, 465941-0004, 465941-0005, 465941-0006, 465941-0007, 465941-0003 |
| OE Number | 14411-22J00, 14411-22J01, 1441122J00, 1441122J01, 1441122J02, 1441122J04, 14411-22J02, 14411-22J04 |
| Year | 1995- |
| Description | Safari, Patrol |
| CHRA | 431876-0071 (431876-5071S) |
| Turbo Model | TB2527 |
| Engine | RD28T |
| Displacement | 2.8L, 2826 ccm, 4 Cylinders |
| Power | 115 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 168� |
| Angle β (turbine housing) | 145.5� |
| Bearing Housing | 446848-0002/479802-0002 NEW IN STOCK |
| Turbine Wheel | 431126-0002/432620-0002/435257-0002/435737-0005 NEW IN STOCK |
| Comp. Wheel | 431350-0015 NEW IN STOCK |
| Back plate | 432280-0001 (1100025300) NEW IN STOCK |
| Heat shield Number | 431055-0003 NEW IN STOCK |
| Repair Kit | 709143-0001 NEW IN STOCK |
| Turbine Housing | 430609-0320 (1100025820) NEW IN STOCK |
| Compressor Cover | 409589-0200 |
| Turbine Housing AR | 0.49 |
| Actuator | 445963-0004 |
| Settings Waste gate (pressure) | 0.853-0.907/1.337-1.503 bar |
| Settings Waste gate (lift shaft) | 0.38/8.00 mm |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Gasket (turbine outlet) | 210269 |
| Gasket (oil outlet) | 413709-0001 |
| Manufacturer | Honeywell-Garrett |
Appliions
1985-98 Nissan Safari, Patrol with RD28T Engine
1982-98 Nissan Patrol 2.8L TD Engine RD28T 160/GR-Y60/260

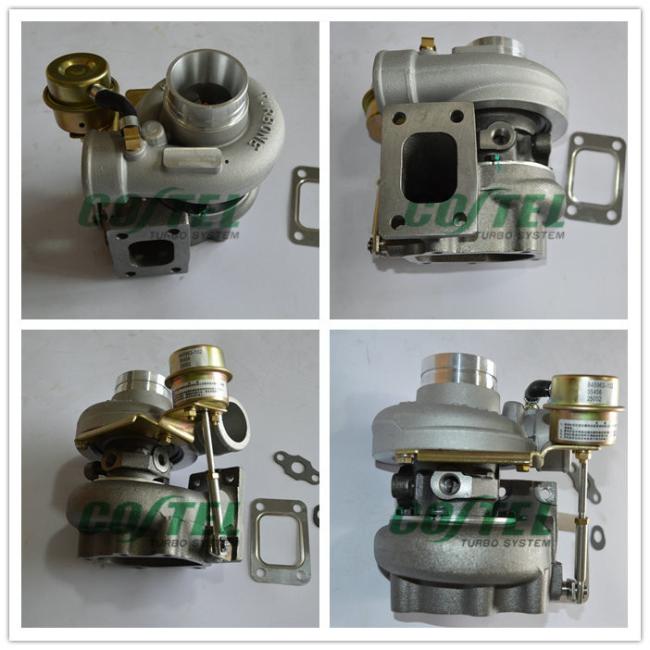

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
