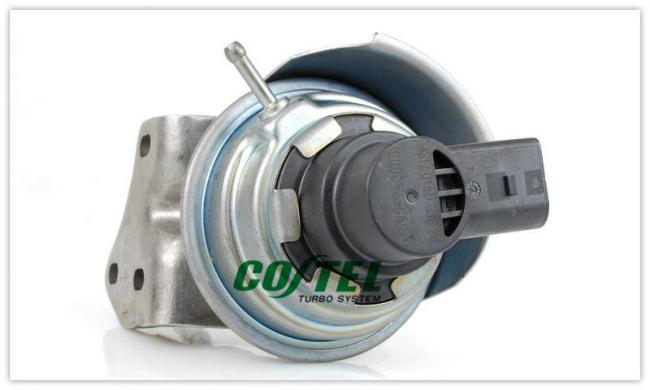

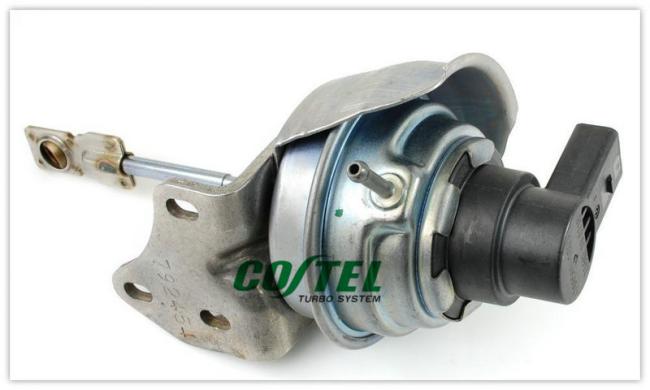

GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX
GOLF JETTA PASSAT, Audi A3 GTC1244VZ (S3E) electric turbo charger Wastegate actuator 775517 03L253016T, 03L253016TX
| Part Number | 775517-5001S |
| Previous Version | 775517-0001, 775517-1, 775517-0001 |
| OE Number | 03L253016T, 03L253016TX, 03L253016TV |
| Year | 2009-13 |
| Description | GOLF TOURAN CADDY, JETTA, PASSAT, Audi A3, Altea TDI 105, Leon TDI 105 |
| CHRA | N/A |
| Turbo Model | GTC1244VZ (S3E) |
| Engine | CAYA, CAYB, CAYC Euro-5 |
| Engine Manufacturer | VW |
| Displacement | 1.6L, 1598 ccm, 4 Cylinders |
| Power | 77/105 HP |
| RPM Max | 4000 |
| Fuel | Diesel |
| Turbine Housing AR | VNT3.5 |
| Gasket exhaust manifold | 210985 |
| Gasket (turbine outlet) | 210878 |
| Gasket (oil inlet and outlet) | 211122 |
| Gasket actuator EGR | 211123 |
| Intercooler | 8ML376746-721 |
| NOTE | Integrated Manifold, Actuator Pneumatic |
| Manufacturer | Honeywell-Garrett |
Appliions
2009- Audi A3 1.6 TDI (8P/PA) Engine CAYC Euro-5
2009-13 Skoda Octavia II 1.6 TDI Engine CAYC Euro-5
2009- Volkswagen Golf VI 1.6 TDI Engine CAYC Euro-5
2009- Volkswagen Jetta V 1.6 TDI Engine CAYC Euro-5
2009- Volkswagen Passat B6 1.6 TDI Engine CAYC Euro-5
2009- Volkswagen Polo V 1.6 TDI Engine CAYC Euro-5
