Hydrophilic Blue Gold Fin Stock Aluminum Foil for Air Conditioner / Air Cooling
1. Aluminum Hydrophilic Foil
Alloy: 8011, 1100, 1200, 1030B, 3102, 3003
Temper: O, H22, H24, H26
Thickness: 0.08-0.3mm
Core ID: 76mm, 150mm, 200mm, 300mm, etc.
Width: Variety
MOQ: 5mt
Package: Standard export wooden case/pallet packing suitable for seaworthy transportation
Payment: TT or LC at sight
Application: The hydrophilic foil has a layer coating material, which has the performance of high corrosion resistance. It can be used in a variety of heat exchange constructions where the basic function is to efficiently transfer heat. Also this fin foil can be used for evaporator and condenser in most residential, automotive, and commercial air conditioning units and in humidifiers and other equipment.

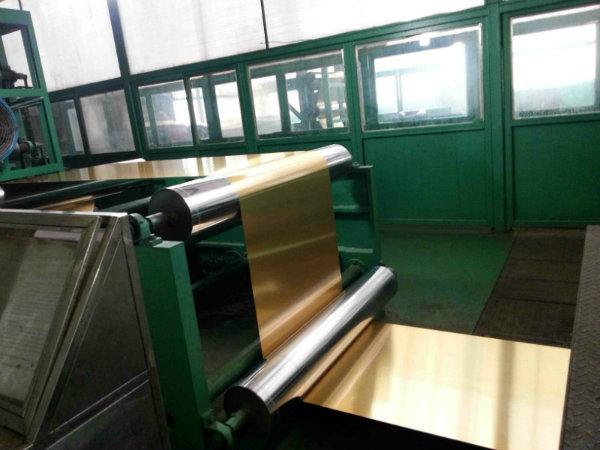

2. Description of our production
Our mechanical property:
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| 8011 | O | 60-100 | ≥45 | ≥20 |
| 8011 | H22 | 70-110 | ≥55 | ≥18 |
| 3003 | H24 | 140-185 | ≥125 | ≥3.0 |
| 5052 | H32 | 185-225 | ≥160 | ≥1.0 |
| 1060 | O | 60-95 | ≥35 | ≥15 |
| 1145 | H24 | 95-135 | ≥55 | ≥4 |
| 3A21 | H14 | 140-185 | ≥125 | ≥3 |
Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | － | 0.1 | － | － | 2 |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.1 | 0.15-0.35 | － | 3 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | － | － | 4 |
| 1145 | Si+Fe:0.55 | 0.05 | 0.05 | 0.05 | － | － | 0.03 | 5 | |
| 3A21 | 0.6 | 0.7 | 0.2 | 1.0-1.6 | 0.05 | 0.1 | － | 0.15 | 6 |
