Heat Transfer Aluminum Radiator Tube Micro Multiport Aluminium Pipe H111
Micro Multiport Aluminum Radiator Tube For Air Conditioning Heat Transfer
Product Introduction:

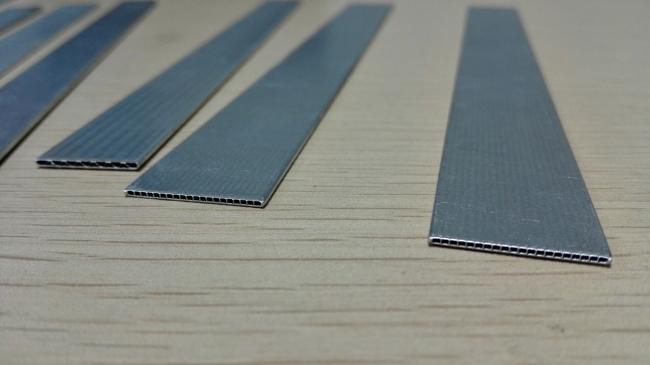

Micro Multiport Extruded Aluminum Tube,is a kind of thin porous flat tubular material,which is treated by surface spraying zinc,using refining aluminum bar by hot extrusion.It is mainly used in all kinds of air conditioning refrigerants system.As a bearer of new environment-friendly refrigerant piping components,it is a key material applied in the new generation of parallel flow microchannel air conditioning heat exchanger and the heat exchange system.
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 1197 | ≤0.15 | ≤0.20 | 0.40-0.55 | 0.10-0.20 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 |
| 4 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 5 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 1197 | O/F/H111/H112 | ≥80MPa | ≥25MPa | ≥20% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following characteristics:
1. Excellent conduction of heat
2. Excellent corrosion resistance
3. High cycle reuse value
4. High surface quality
5. Low weight
6. High compressive reinforcement
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Features of our aluminum flat tube:
1. Bright, no corrosion, no oxidation.
2. Straight, no deformation.
3. Strong, tough, have a perfect corner bending at 90 degree.
4. Neat and smooth cutting section, no burr.
5. High frequency welded, precise in specifications, easy to install.
6. Radiator tubes can be custom-made to meet your special requirements.
Package: coils or Straight with fixed length
Surface Treatment : Zinc spray / without Zinc spray
