3003 3102 Aluminum Radiator Tube Microchannel Coil For Condensers / Evaporators

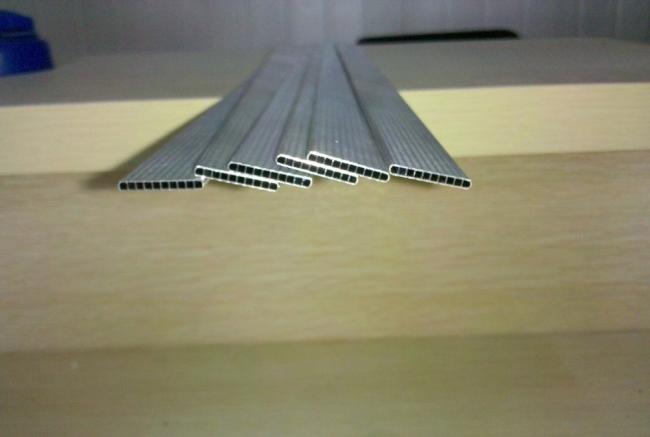

3003 / 3102 Aluminium Microchannel Flat Tubes For Condensers
Product Introduction:
The Aluminium Microchannel Flat tubes,also called Aluminium Multi Port Extruded tubes,are unique tubes developed with highly refined manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.
The Aluminium Microchannel Flat tubes,or Aluminium Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality and is characterized by the following properties:
1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
Applications:
Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.
The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.
| MPE | Width | 7-120mm |
| Height | 1-10mm | |
| Wall thickness | 0.2-0.5mm | |
| Other non-standard dimensions are available upon request. | ||
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
