Flat Oval Aluminum Radiator Tube Micro Channel Aluminum Flat Tube O F Temper

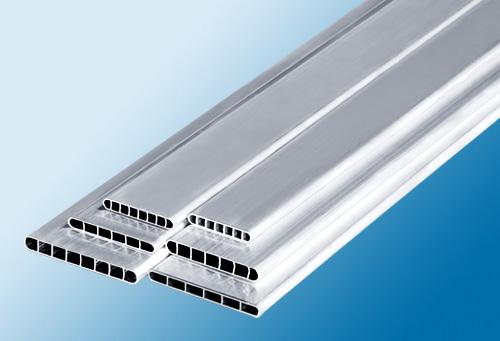

Aluminium Multi Port Extruded Tube For Heat Exchangers / Micro Channel Aluminum Flat Tube
Product introduction:
The Aluminium Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are ideal for use in highly effective heat exchangers.
The aluminium Multi Port Extruded Tube is a highly refined quality product and is characterized by the following properties:
1. Low weight
2. Excellent conductor of heat and electricity
3. High corrosion resistance
4. High recycling value
5. High pressure resistance
6. High surface quality
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
Applications:
1. The aluminium micro multi port extruded tube is primarily used for the following applications:
Condensers / Evaporators / Oil coolers / Radiators / Heater cores.
2. The aluminium macro multi port extruded tube is primarily used for the following applications:
Charge air coolers / Oil coolers / Fuel coolers / Industrial coolers.
Dimensions:
The multi port extrusions(MPE) are available in various sizes and alloys, ensuring the best properties for the purpose required.
| MPE | Width | 7-120mm |
| Height | 1-10mm | |
| Wall thickness | 0.2-0.5mm | |
| Other non-standard dimensions are available upon request. | ||
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
