Unclad Aluminium Heat Transfer Foil For Domestic Air Conditioner O / H22 Temper
Unclad Aluminium Heat Transfer Foil For Domestic Air Conditioner O / H22 Temper
Alloy 8011 , Thickness 0.2 mm Aluminium Heat Exchager Foil Manufacture For Domestic Air Condition
Quick Details :
1 . Alloy :1100 ,1200 , 3102 , 8011
2 . Temper : O , H22 , H24 , H26
3 . Thickness : 0.08 - 0.2 mm
4 . Width : 60 - 1440 mm
5 . Inside Diameter : 75 , 150 , 200 , 300 , 400
6 . Outside Diameter : 400 - 1400 mm
Chemical Composition ( For Reference Only )
|
NO
|
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al |
|
1
|
8011 | 0.33 | 0.27 | 0.05-0.20 | 0.05 | - | - | - | - | - | 0.15 | 99.0 |
Mechanical Performance ( For Reference Only )
|
Temper
|
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Erichsen (mm)
|
O |
80- 110 |
20 |
6.0 |
H22 |
100 - 135 |
16 |
5.5 |
H24 |
115 -145 | 12 | 5.0 |
H26 |
125 - 160 |
8 | 4.0 |
H18 |
160 | 1 | - |

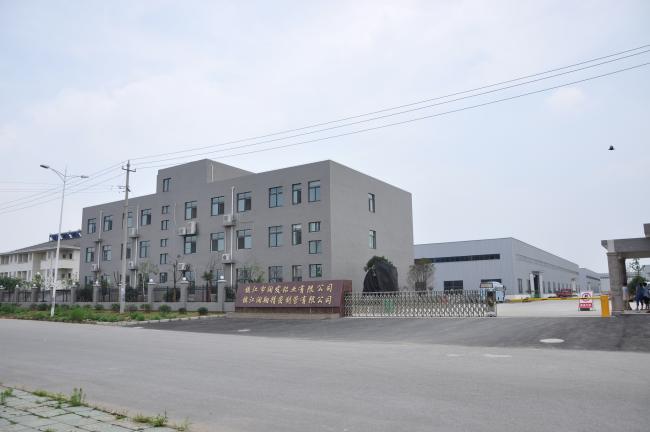

Our Factory Site Picture
Company Information
Our company was established in 2006 and mass production began in Jan.2007. With ISO 9001:2000 and ISO/TS16949.2002 certificated , we are one of the global leading and most specialized suppliers of heat exchanger materials for automobile, HVAC and industrial cooling tower, Our designed annual capacity is 80,000MT in the first stage.
