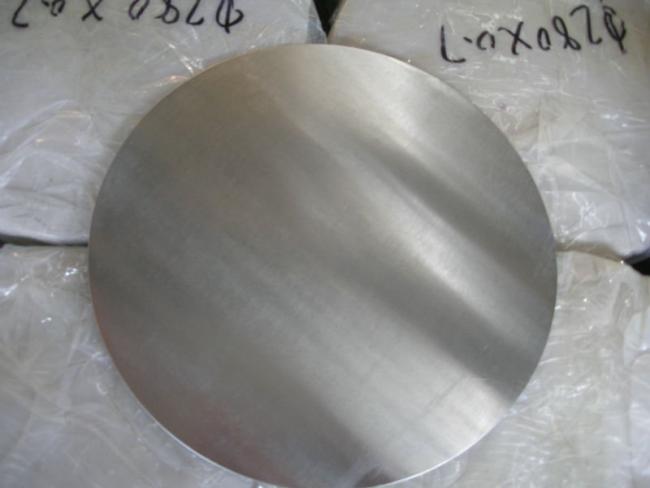

H112 Round Aluminum Circle 1050 With Thickness 0.8mm / 1mm / 1.2mm / 1.5mm
Aluminum Circle Round Piece 1050 With Thickness 0.8mm / 1mm / 1.2mm / 1.5mm
1. Alloy: 1100, 1050, 1060, 1070, 3003
2. Temper: O, H12, H14
3. Thickness: 0.5-8.0mm
4. Diameter: 100-1000mm
5. Type: Discs, sheet, coil, plate, strip
6. Min order: 500kgs each size
7. Payment TT or Irrevocable LC at sight
Application of Aluminium Circle:
By the advanced deep drawing technology, we can manufacture the products such as aluminum pan, aluminum plate and so on. These products are widely used in kitchenware, cookware, reflector-light,Roof Vent,Cookware,etc.
Product Features:
1. Wide range of selection on circles' size including customized shape and size;
2. Excellent deep drawing and spinning quality;
Product Range:
1) Product Specifications:
| Product Name | Alloy | Purity | Hardness | Specifications(mm) | |
| Thickness | Diameter | ||||
| Aluminum Circle | 1050 1060 3003 | 96.95-99.70% | O,H12,H14 | 0.5-8.0mm | 100-1000mm |
1*** non alloy, 3**** is alloy
2) Chemical Composition (%):
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
| 1050 |
0.25 |
0.40 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 0.05 | 0.03 | 0.03 | 99.7 |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | 0.03 | - | - | 0.10 | - | - | - | 0.15 | 96.95-96.75 |
3) Product Properties:
| Temper | Thickness(mm) | Tensile Strength | Elongation(%) | Standard |
| O | 0.4-6.0 | 60-100 | ≥ 20 | GB/T3190-1996 |
| H12 | 0.5-6.0 | 70-120 | ≥ 4 | |
| H14 | 0.5-6.0 | 85-120 | ≥ 2 |
Packing of Aluminium Circle
Aluminium Round Piece can be packed in export standard, covering with brown paper and plastic film. Finally the Aluminium Round Piece is fixed on wooden pallet/wooden case.
