3003 Brazing Cladded Aluminum Foil Roll For Automotive Heat Exchangers
Product name:3003 Brazing Cladded Aluminum Foil Roll For Automotive Heat Exchangers
We have been focused on the research and development of aluminum heat exchange materials for more than 10 years. We are devoted to finding solutions and creating value for our customers. Cladded aluminum material is suitable for a variety of brazing processes, such as Nocolok brazing and vacuum brazing. It's widely used in engine cooling and air conditioner systems in automotive industry, such as radiator,condenser,evaporator,intercooler,oil cooler and heater.In home electrics industries, such as HVAC heat exchanger,water heater,PTC heating unit; In the industrial field, such as power plant cooling systems,construction machinery and air separation equipment. Our cladded aluminum material highly recommended in the market for its stable mechanical properties,stable clad percentage and excellent corrosion resistance .
We have developed lots of new alloys for heat exchangers to meet the different technical requirements of customers. According to our continuous internal research and customer feedback, we have developed the our own series which are more suitable for customers than standard alloys. We have alloys with various properties for different applications, such as long life alloy for tubes,collapse resistant alloy for fins,high strength aging alloys for plates, etc.
Product specifications:
| Thickness range | 0.05-6.0mm |
| Width range | 450-1300mm for plate;12-1300mm for coil |
| Length for aluminum plate | 500-6000mm |
| ID | 75mm,150mm,200mm,300mm,400mm |
| OD | 1700mm max. |
| Application |
Radiator/condenser/evaporator/intercooler/oil cooler/heater |
Chemical composition:
1)3003:
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 0.6 | 0.7 | 0.20 | 1.5 | － | 0.05 | 0.10 | 0.05 | － | － | Rem |
| Min | － | － | 0.05 | 1.0 | － | － | － | － | － | － | － |
2)3003+1.5%Zn+Zr
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 1.0 | 0.7 | 0.15 | 1.8 | － | － | 2.0 | － | 0.20 | － | Rem |
| Min | 0.5 | － | － | 1.4 | － | － | 1.0 | － | 0.05 | － | － |

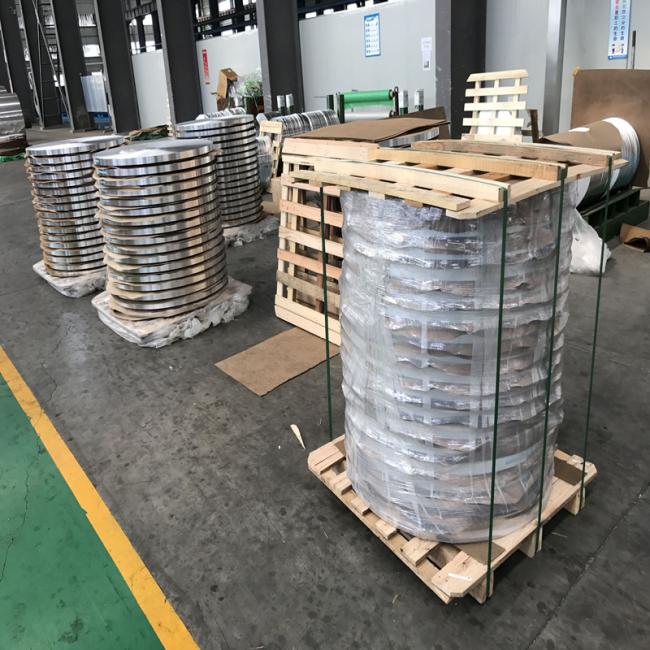

Packing:Fumigated pallet specialized for export
Delivery time:Normally 25-30days
Payment terms:T/T;L/C;D/A;D/P,or as per discussed with customers
MOQ:Normally 6 ton for one master coil,for the regular specifications,it can also be combined together.
Sample order can also be supported.
FAQ:
1, Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical performances so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,including alloy,temper,thickness,width,length,surface requirement,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: You can contact us freely.
5. Q: What is your company sample policy?
A: Sample with small pieces can be supplied for free,but the courier cost have to be charged or collected at customers' end.
