3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
Product Description:
Aluminum extruded flat tube is an important spare part for auto radiators/condensers etc.Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Aluminum Extruded Flat Tube- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:
1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
Beside increased global performances, an all-aluminium brazed heat exchanger using Aluminum Extruded Flat Tube will also present better corrosion resistance. Aluminum Extruded Flat Tube are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Aluminum Extruded Flat Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.
Dimensions: Designed to customer specification

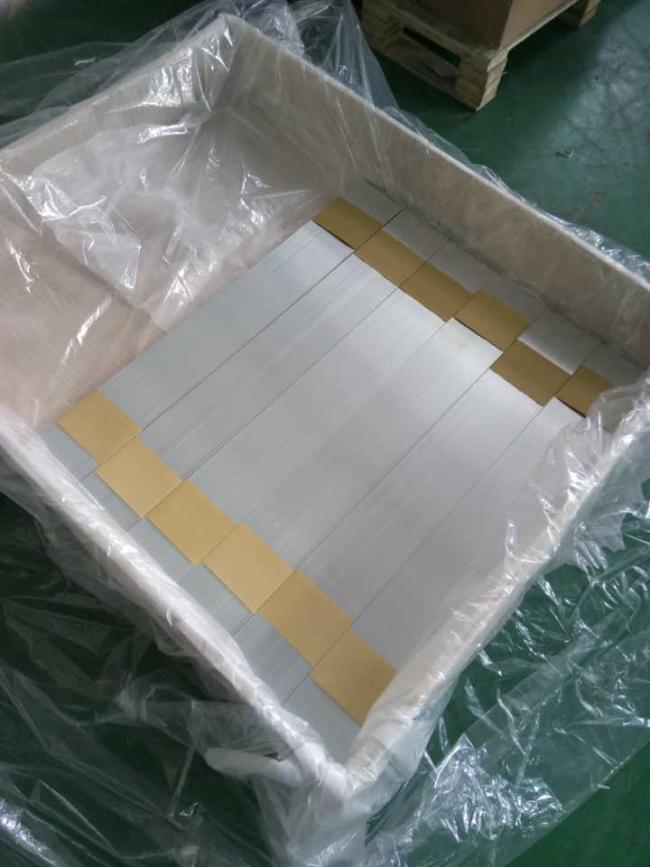

Package: coils or Straight with fixed length
Surface Treatment : Zinc spray / without Zinc spray
