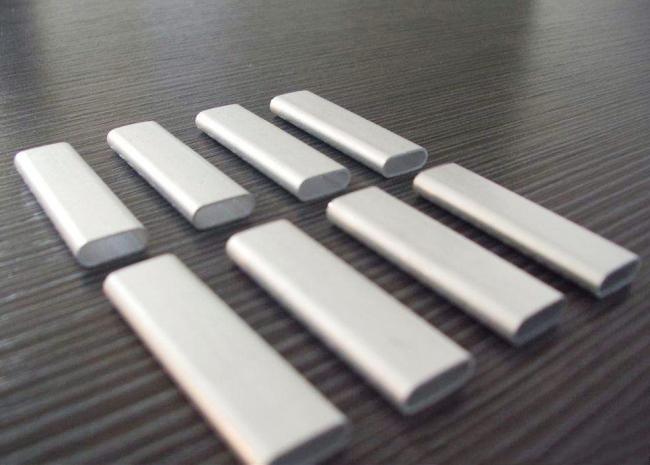

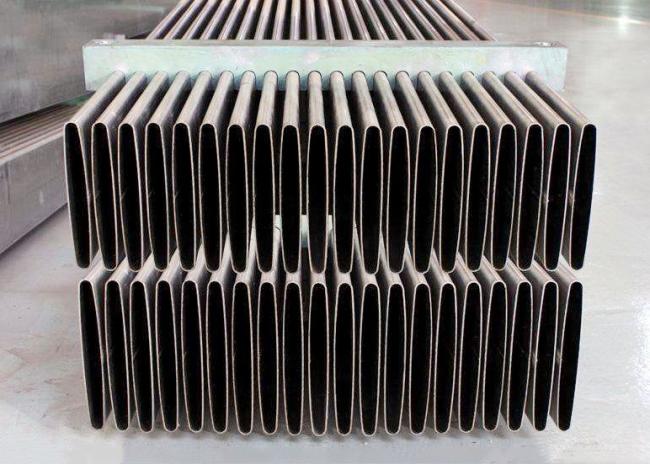

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner

Price Negotiable

Price: Negotiable

MOQ: 5 tons

Delivery Time: according to specification and quantity

Brand: Trumony

Product Description

Micro multi-port tube is applied not only in car air conditioner but also in the field of commercial, household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler.

1. Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

2. Mechanical Properties

No.	Alloy	Temper	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elogation(%)
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

3. Size Tolerance

Width	Thickness	Wall Thickness	Length	Lateral Curvature	Frontal Curvature	Twsiting Dgree
± 0.05mm	± 0.03mm	± 0.05mm	± 0.03mm	≤ L× 0.2%	≤ L× 0.25%	≤ L× 0.15%

4. Corrosion Resistance
Salt spray test: ≥ 750 hours
5. Zn Coating Standards
6/8/10/13± 2g/square meter
6. Flux Cotaing Standards
10-15± 2g/square meter
