Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers
Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers

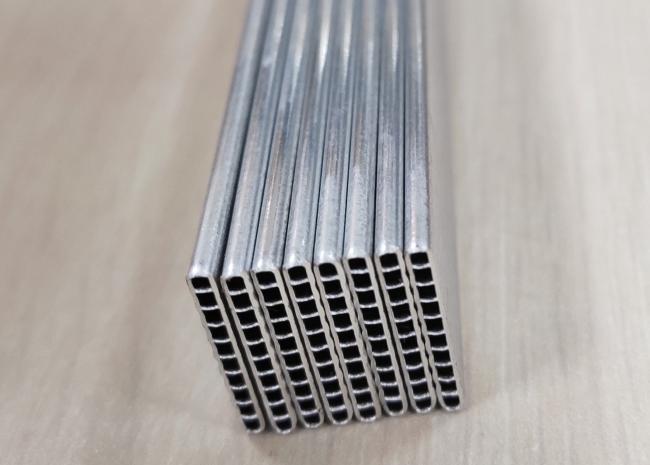

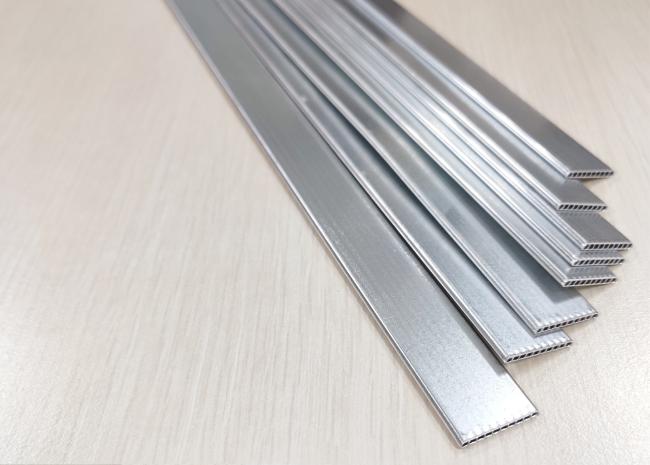

Micro-multiport tube is the high-tech aluminum products under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.
Micro-multiport tube is the core materials of new generation parallel flow air conditioning heat exchangers. It is outstanding in enviromental-friendly, efficient, energy-saving and cost reduction and was approved vividly in automobile air conditioning system. With restriction and prohibition of the application of the traditional refrigerant, it is a trend that household and commerical air conditioning heat exchanger needs revolution.
| Chemical Composition | ||||||||||
| No | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 01 | 1050 | ≤ 0.25 | ≤ 0.40 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | --- | ≤ 0.05 | ≤ 0.05 | ≤ 0.03 |
| 02 | 1100 | ≤ 0.95(Si+Fe) | 0.05-0.20 | ≤ 0.05 | --- | --- | ≤ 0.10 | --- | --- | |
| 03 | 1197 | ≤ 0.15 | ≤ 0.20 | 0.40-0.55 | 0.10-0.20 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| 04 | 3102 | ≤ 0.40 | ≤ 0.70 | ≤ 0.10 | 0.05-0.40 | --- | --- | ≤ 0.30 | --- | ≤ 0.10 |
| 05 | 3R03 | ≤ 0.15 | ≤ 0.15 | ≤ 0.01 | 0.90-1.10 | ≤ 0.03 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| Mechanical Properties | |||||
| No | Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 01 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
| 02 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 03 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| 04 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 05 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
