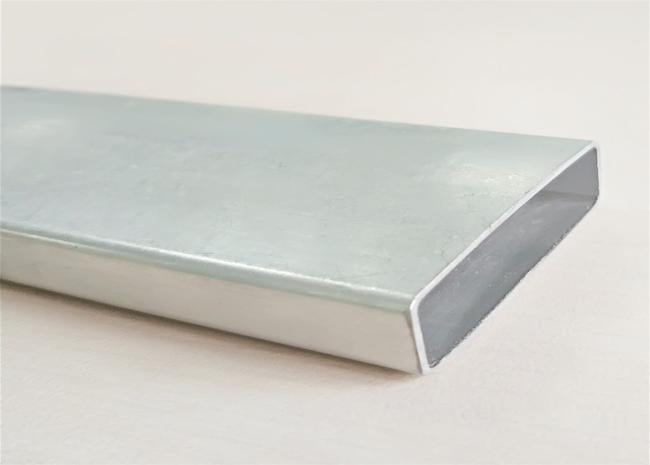

Durable Auto Aluminum Spare Parts Heat Sink High Frequency Welded Tube
Features of our aluminum HF tube:
1. Bright, no corrosion, no oxidation.
2. Straight, no deformation.
3. Strong, tough, have a perfect corner bending at 90 degree.
4. Neat and smooth cutting section, no burr.
5. High frequency welded, precise in specifications, easy to install.
6. Radiator tubes can be custom-made to meet your special requirements.
Our Aluminum HF Tube can be widely used for heat sink / transfer.
Like evaporator, air conditioner, condenser, heat exchanger, freezer, oven gas, boiler and so on.
The material can be 1050/1060/1070/3003/3102 or as customer’s request.
Temper O-H112,H112,F.
We can do many kinds of sizes, such as 4.0x0.5mm, 6.0x1.0mm,7.0x1.0mm, 7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,16.0x1.0mm, 9.05x1.5mm.
Specification:
Various size as customer's requirements
Material:
3003 and other series aluminum alloy
Surface treatment:
anodizing, polishing, turning, power coating, mill finish etc
Design:
OEM, ODM, or design by ourselves
Equipment:
CNC ,extruding machine, cold drawn machine, heating oven, straightening machine, cutting machine
Our advantage
Trumony started up since 2004, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast delivery time;
Sample order is acceptable
High performance cost ratio;
Good communication skills, and good service and understandings for customers
| Mechanical Properties | |||||
| No | Alloy | Temper | Tensile strength |
Yield strength |
Elongation |
| 1 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
| 2 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 3 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| 4 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 5 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| specification | Various size as customer's requirements |
| Tensile Strength | 95-185above |
| hard-solder | Yes |
| usage | Per customer's demand, our cooling plate can be used for newenergy vehicles. We also provide designing scheme for customer's heat radiating requirement |
| Suface treatment | anodizing ,polishing,turning ,power coating,mill finish etc |
| Equipment | CNC ,extruding machine,cold drawn machine,heating oven,straigtening machine,cutting machine |
| Chemical Composition | ||||||||||
| No | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤ 0.25 | ≤ 0.40 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | --- | ≤ 0.05 | ≤ 0.05 | ≤ 0.03 |
| 2 | 1100 | ≤ 0.95(Si+Fe) | 0.05-0.20 | ≤ 0.05 | --- | --- | ≤ 0.10 | --- | --- | |
| 3 | 1197 | ≤ 0.15 | ≤ 0.20 | 0.40-0.55 | 0.10-0.20 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| 4 | 3102 | ≤ 0.40 | ≤ 0.70 | ≤ 0.10 | 0.05-0.40 | --- | --- | ≤ 0.30 | --- | ≤ 0.10 |
| 5 | 3R03 | ≤ 0.15 | ≤ 0.15 | ≤ 0.01 | 0.90-1.10 | ≤ 0.03 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
