Custom Aluminum Radiator Tube Extrusion Channel Multi Port Tube For Condenser
Extrusion Channel Multi Port Tube Aluminum Radiator Tube For Condenser

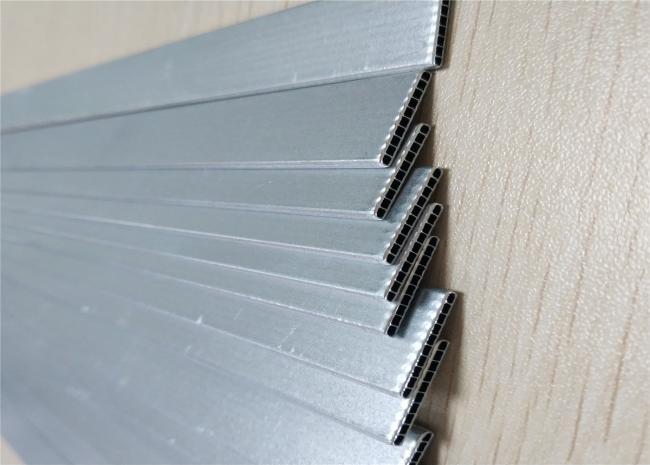

Micro-channel flat aluminum pipe with their large internal surface area, yield more efficient heat transfer and are therefore ideal for use in highly effective heat exchangers. We have many kinds of molds and can be used in various situtations.
Our advantage
Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers
The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fill
Our Aluminum Micro Channel Tube can be widely used for heat sink / transfer.
Like evaporator, air conditioner, condenser, heat exchanger, freezer, oven gas, boiler and so on.
The material can be 1050/1060/1070/3003/3102 or as customer’s request.
Temper O-H112,H112,F.
We can do many kinds of sizes, such as 4.0x0.5mm, 6.0x1.0mm,7.0x1.0mm, 7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,16.0x1.0mm, 9.05x1.5mm.
FAQ
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength (Mpa) | Elongation(%) |
| TR-010,TR-020,TR-030,TR-040, TR-050,TR-110,TR-310,TR-116, TR-316,TR-111,TR-313,TR-121, TR-131,TR-141,TR-150,TR-151, TR-156Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166Etc. Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
| Mechanical Properties | |||||
| No | Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 1 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
| 2 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 3 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| 4 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 5 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| CHEMICAL COMPOSITION (%) | ||||||||||||||||||||||
| Item | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | The rest | Al | ||||||||||||
| Single | In total | |||||||||||||||||||||
| Demand (%) | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Allowance | |
| / | 0.4 | / | 0.7 | / | 0.1 | 0.05 | 0.4 | / | / | / | 0.3 | / | / | / | 0.1 | / | / | / | / | |||
| Test result | 0.079 | 0.244 | 0.001 | 0.392 | 0.001 | 0.008 | 0.0005 | 0.009 | / | / | Allowance | |||||||||||
