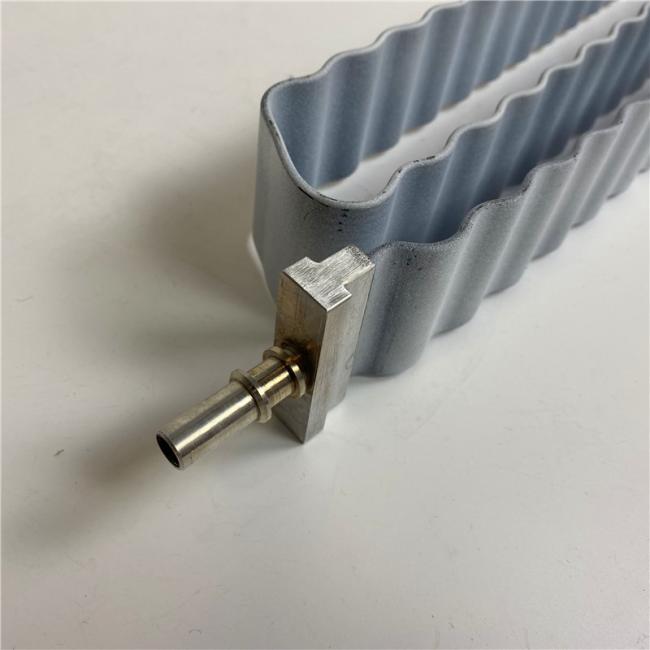

3003 Serpentine Aluminum Extruded Tube For Battery Pack Thermal Management
3003 Serpentine Aluminum Extruded Tube For Battery Pack Thermal Management
1. Product Introduction:
The Serpentine Aluminium Extruded Tubes are further processed from the micro-channel aluminum tubes,which are unique tubes developed with highly refined manufacturing quality.The tube port and tube size can be customized according to customers' design.
We can achieve more efficient heat transfer by making the large internal surface area and hence are widely used in highly effective heat exchangers.
Based on the recent few years' supplying experience,we could offer R&D recommendation,tooling design service together with the sample supply for prototype manufacturing. We have combined our supply chain with brazing technology,extrusion technology,CNC processing,painting,welding etc thus ensured our clients with one stop sourcing for short sample delivery time and mass production cost efficiency.
Relying on our strong design team and project management team,as well as the production support with many customers in China and oversea countries,we have accumulated first-hand experience,which will surely make your project fall into the ground most quickly and reliably.It has always been our mission that using materials to make technology come true.
2. The Aluminium Multi Port Extrusion (MPE) or microchannel tube is unique tube developed with the highest manufacturing quality and is characterized by the following properties:
1) Light weight
2) Excellent conductor of heat and electricity
3) High corrosion resistance,the surface can be coated
4) High recycling value
5) High surface quality
6) High pressure resistance
7)High heat transfer and high touching area with battery to increase the heat exchange
3. Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
4. Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Application:New Energy Vehicles Battery Pack Cooling
6. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
