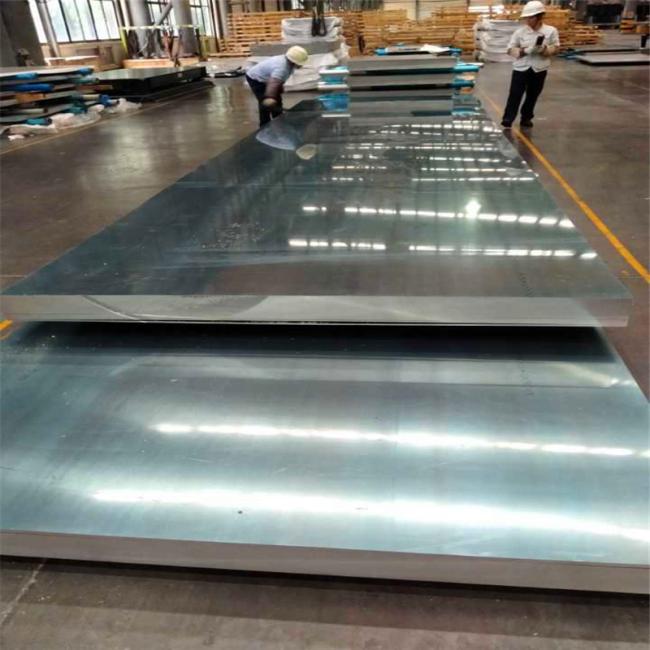

Cold Rolled 7020 7N01 7075 7050 Aluminum Alloy Plate
7xxx Cold-rolled Aerospace Aluminum Alloy Plate
There is very high and strict requirement for the aluminum materials used for aircraft ,it must be very good strength, toughness, purity requirements,and has very long material service life and re-living capacity.
The 7xxx series aluminum alloy plate we are supplying are including 7020/7N01/7075/7050,which are widely used for aero& aviation,railway transportation, automotive ,marine and offshore engineering,energy sources,tool and mould etc.
Specification of 7xxx aluminum alloy plate:
Alloy: 7020/7N01/7075/7050
Temper: O/T4/T6
Thickness: 0.20-3.5mm or as per customers' requirement
Width: 1200-2650mm or as per customers' requirement
Length: 2000-12000mm or as per customers' requirement
We are supplying the extra thick,extra wide and extra long aluminum alloy plate.
Other sizes is available according to customer's request.Besides aluminum alloy plate,we are also supplying the aluminum coil as per customers' requirement.
Application:
| 7xxx | 7050 | Radar structural parts ,manufacturing structure of aircraft, other high stress structural elements which demand high strength and strong corrosion resistance etc. |
| 7075 | Aviation, aerospace, moulding, mechnical equipment, tooling and fixture etc. | |
| 7N01 | Bed plate of high speed train and coal transportation vehicle etc. | |
| 7021 | Unit load device of aviation,components for aerospace and aviation |
Typical Chemical composition:
| ALLOY NO. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 7075 | 0.4 | 0.5 | 1.0-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0.06 | Rem |
Terms and conditions:
Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.
