Aluminum Extruded Tube Micro Channel For Automotive Radiator
Extruded Aluminum Micro-channel Tube For Automotive Radiator

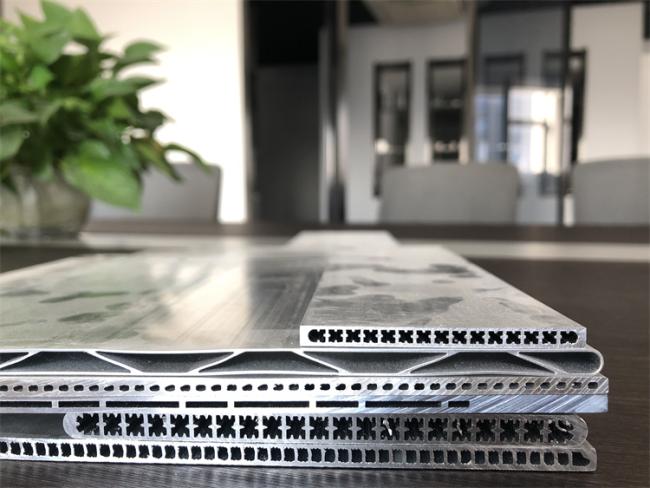

Aluminium multi-channel tube, also called multi-port extrusion, is an excellent candidate for most heat transfer applications. This flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio. It’s lightweight, corrosion-resistant, and an excellent choice wherever strength is required.
Our factory in producing a multi-channel aluminium tube, so it can provide various multi-channel aluminium tubes with different sizes, shapes, aluminium alloy. Trumony Aluminium is a professional supplier of Aluminium Alloy Tube with high quality, the aluminium tube price is reasonable. Our products have excellent economic performance as well as excellent mechanical performance and safety.
| Item | Extruded Aluminum Micro-channel Tube For Automotive Radiator |
| Size | Customized |
| Alloy | 1050,1100,3003,3102 |
| Temper | O, H14/H16/H24 |
| Feature | Low energy cost, high performance and pressure reisistance |
| Application | car Radiator, condenser, evaporator, oil cooler, heater coil |
Chemical Composition
| No | Alloy Grades | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | --- | 0.05~0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- |
| 3 | 1197 | ≤0.15 | ≤0.20 | 0.40~0.55 | 0.10~0.20 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 |
| 4 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05~0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 5 | 3R03 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90~1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Aluminium multi-channel tube is also called aluminium multi-port tube. It's for the auto air-conditioning industry.
Aluminium multi-channel tube contains a common aluminum pipe sharp corner pipe, internal tooth pipe, zinc spraying pipe, conjoined pipe, intercooler flat pipe and other special pipes. mainly be used on the automotive air conditioner, public air conditioner, heat exchanger, condenser, evaporator.
The big or small multi-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required.
Characteristics
● Lightweight
● Corrosion-resistant
● Excellent heat transfer performance
● Tighter tolerances
● Reduced assembly time
● High level of surface quality
● Big and wide aluminum extrusions for diverse applications
