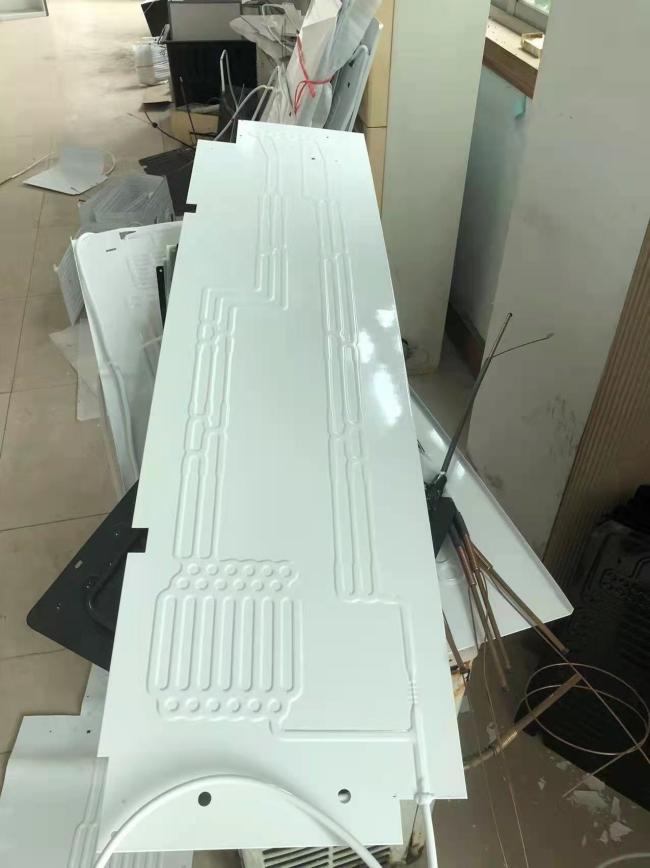

Aluminum Freezer Roll Bond Evaporator 1.2mm Thickness
1.2mm Thickness Aluminum Roll Bond Plate Type Freezer Evaporator
We can supply different roll bond panels such as Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator.Except this, we also supply liquid cooling plate for EV, aluminum micro channel cooling tube for EV , and vapor chamber (VC).
Specification
| Al- plate | Finished products thickness:1.1-2.0mm |
| Raw material Al plate thickness | 1.4-2.5mm |
| Coating thickness | 40-90um |
| Coating hardness | More than 2H |
Raw material : Al-plate: finished products thickness: 1.1 2.0mm, & raw material Al plate thickness: 1.4 2.5mm
Structure : Double side roll bond evaporator, Single side roll bond evaporator,part single side roll bond evaporator
Key Process :Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Company Information
Trumony Aluminum Limited is located in Suzhou City, a traditional cultural and commercial center. With decades of rich experience,
Trumony takes heat transfer as its core business, focusing on providing key aluminum materials and components for fuel-fuel vehicle thermal management, new energy vehicle thermal management, and industrial heat transfer. Trumony′s mission is Bringing science and technology to reality.
Through the use of advanced equipment and technology, Trumony Aluminum Ltd provides water-cooled plates, serpentine elbows, multi-layer brazing materials, special alloy strips, multi-metal composite materials and various types of aluminum tubes, plates, coils, strips and foils in these industries.
Pls. Welcome to contact us for more information and service.
