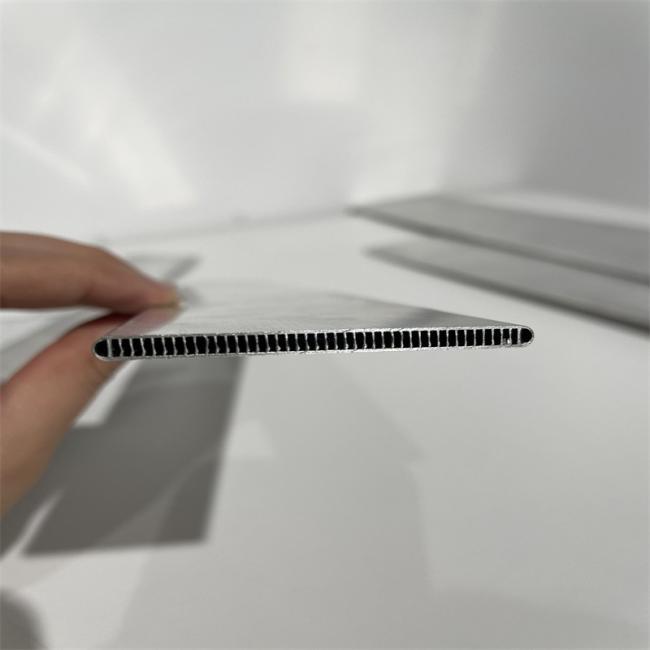

Zinc Spraying Aluminum Extruded Tubing Width 8 - 40mm Customized
Width 8~40mm Customized Zinc Spraying Aluminum Extruded Tubing
Trumony has over 16 years of experience in providing aluminum tube for condenser, evaporator, air cooler, and other heat exchangers. We have lots of mold tooling for your choice. In case of any special demand, qualified samples can be supplied after the customer providing the relevant drawings.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1mm~5mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of pores | 3~30 |
It can be customized according to customers' request!
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
