Cylindrical Battery Water Cooling Channel Serpentuator For Household Energy Storage

Water Liquid-Based Battery Cooling Tube Plate for Small Electric Pickup Truck

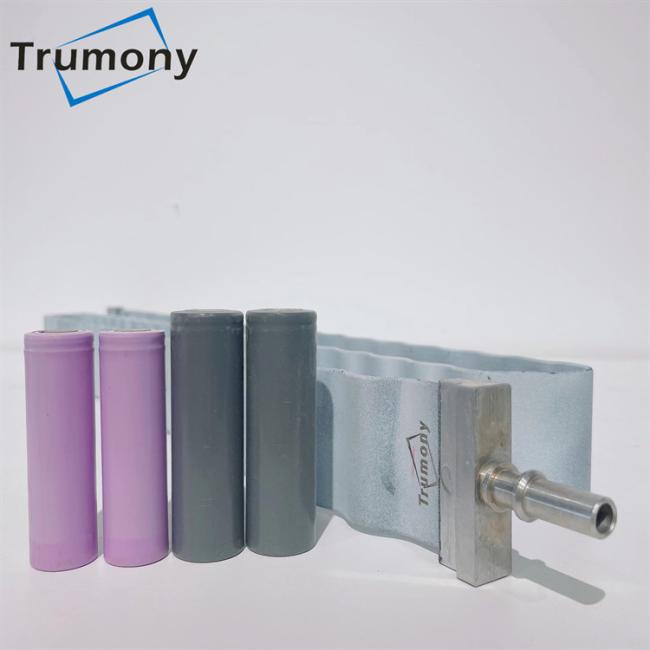

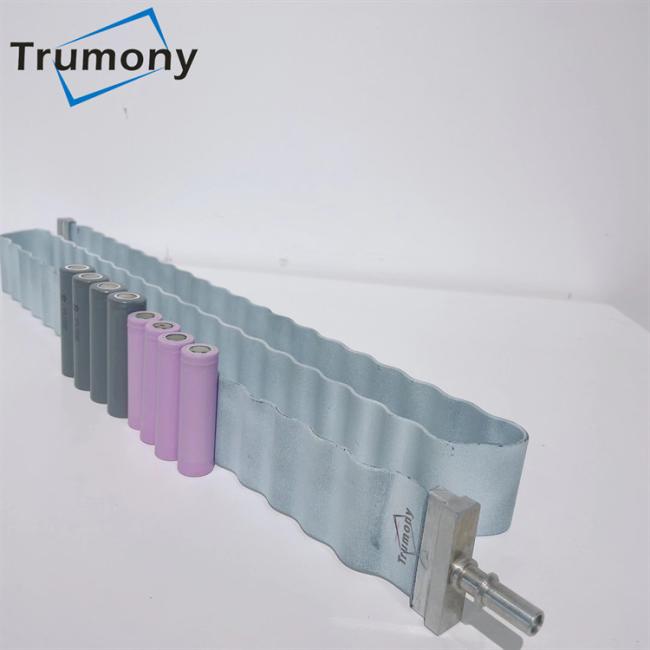

The aluminum cooling channels is designed for cylindrical cells. According to the size of the cells size , battery module layout and heat dissipation effect , we can design and make bettery solution for your electric cars. Water / glycol as the coolant flow in the micro channels. it will take away the excess heat and keep the battery module in safe temperature range to guarantee the driving safety.Whatever for four wheels commercial cars, heavy duty trucks, minibus, electric cargo trucks,we can give our suggestion for your battery cooling system design. And our advantage is tooling development, making all kinds of heat exchanger , assistance in parts design and one-stop solution service .

FAQ :

1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .

2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.

3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
