304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor

Price Negotiable

Price: negotiation

MOQ: 1 unit

Delivery Time: 7-15 work days

Brand: RONA

Product Description

Mechanical Transmission Parts304 Stainless Steel Acrylic Swing Arm Automatic Flap Barrier Turnstile With Servo Motor

Producto description:

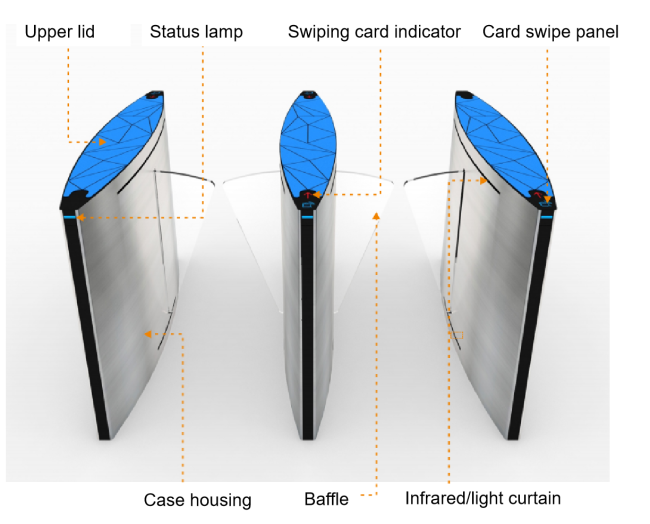

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

Functions & Feature:

1	Motor	Self-developed planetary gear reducer structure, driven by servo motor, compact structure, large torque, low noise and wear resistance.
2	Control System	The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life.
3	Technology	Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience.
4	Mechanical Transmission Parts	Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and assembly, more compact operation, smaller operation gap, and longer service life.
5	Wing	Made by plastic mold, standardization, and refinement, surface treatment technique, the best visual effect of lighting.

Technical Parmeters:

Motor type	Servo motor
Main board type	V3.1
Normal running life	10 million times
Sensor quantity	9 pairs senso(Optional 40 pairs light crutains)
Pass speed	30 person/min
Passage width	550-900MM(Double flap)
Swing arm material	Acrylic/PU soft
Communication interface	TCP/IP,RS232,Dry contact
Input interface	AC100-240V,50/60hz
Working woltage	DC24V
Working power	100W
Working temperature	-15°C-70°C
Working humidity	5%-90%
Working environment	Indoor/semi-outdoor
