DC24V Brush Motor Access Control Turnstile Gate 1500mm 180mm 990mm for High-Grade Residential Area
L1500mm*W180mm*H990mm DC24V Brush Motor Access Control Gate For High-grade Residential Area
Product Introduction
As a high-performance swing barrier turnstile gate, the swing turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.
Swing barrier turnstile is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage.
Functions&Features
- The housing material is 304 stainless steel, it is very durable.
- Break-in alarm. Trailing alarm.When reverse entry occurs,the gate closes automatically
- Anti-pinch function, infrared induction anti-pinch function.
- With standard fire alarm input interface, the device will unconditionally open first after receiving the fire alarm signal.
- Gate opening and closing time is 0.8~3s.Time required to enter the traffic state after power-on is 3s.
- Anti-collision movement, clutch lock, quiet and efficient.
- The motor type is sensor motor.Use the numerical control encoder to limit, accurate, efficient and low failure rate.
- With a zero-bit self-inspection function, easy for users to maintain and use.
- Remote control and management can be realized through the management computer directly.
Parameters
| Size: | L1500*W180*H990 mm |
| Motor type: | Brushless motor |
| Main board type: | V2.621 |
| Normal running life: | ≧8 million times |
| Sensor quantity: | 9 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | 500-1100MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 100W |
| Working temperature: | -15℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Advantage

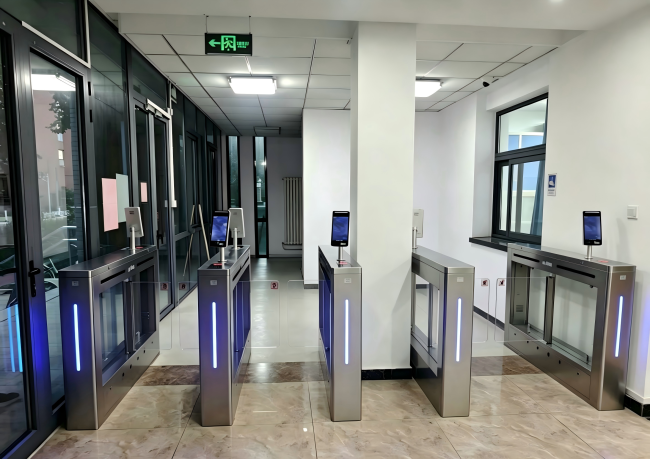

Project cases
![]()
Export Wooden Box
Need a Turnstile Solution for Your Project?
Every entrance project has different requirements. Tell us your installation location, required quantity, passage width and preferred access control method. Our team will recommend a suitable configuration and prepare a project-based quotation for you.
