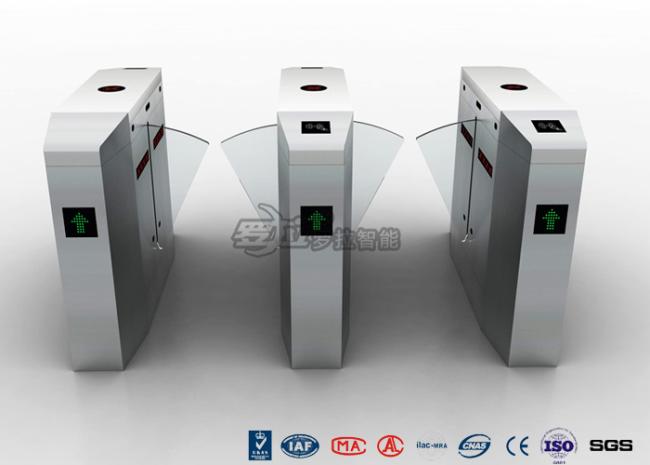

Metal Security Flap Barrier Gate Anti - Clamp 900mm Handicap With Fingerprint
Metal Security Flap Barrier Gate Anti - Clamp 900mm Handicap With Fingerprint
Flap barrier gates introduce
Smart turnstile (block gate) is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.)；Double motors (suitable for multiple passageways)
Feature & Advantages
| 1. Self-checking function. | ||
| 2. Working types: 2.1,bi-direction card reading; 2.2.one direction card reading and another prohibited; 2.3,one direction card reading and another free pass. Working types can be set in the control board. |
||
| 3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on. | ||
| 4. Arm open&close time can be set by user in control boards | ||
| 5. Manager can set pass time in control boards. | ||
| 6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card. | ||
| 7. Flap barrier is RS485 interface for long-distance control. | ||
| 8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately . | ||
| 9.LED display passengers numbers. | ||
| 10. Direction display guide passenger go or stop. | ||
| 11. Control software regulate authorized passengers numbers. | ||
| 12. Stable running with low- noise. | ||
Technical parameters
| Model | RNCF 9088 | RNCF 9088S | |
| Item | Single flap barrier | Double flap barrier | |
| Power consumption | 50W | 100W | |
| Housing Size | 1400x300x990 mm | ||
| Housing material | 1.5--2mm, #304 Stainless Steel, Matt finish | ||
| Drive motor | DC brushless motor | ||
| Channel width | 550mm | ||
| Pass speed | 30~40 persons/min. | ||
| Power supply | 220Vac 50Hz or 110Vac 60Hz | ||
| Input interface | Switch Volume or 12V Level | ||
| Communication interface | RS485 | ||
| Gate open while power off | Yes | ||
| Working temperature | -30°C~+70°C | ||
| Working environments | Indoor, outdoor | ||
| Relative humidity | ≤95% coagulation free | ||
| MCBF | More than 3 millions | ||
| Warranty | 1 year | ||
| Outside packing | Plywood box, 1520 x 420 x 1140mm | ||
| Pieces per box | 1 pcs / box | ||
| Gross weight | 110KG | 130KG | |
Application
Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
