Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

Price Negotiable

Price: negotiation

MOQ: 1 unit

Delivery Time: 7-15 working days

Brand: RONA

Product Description

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

PRODUCT CLASSIFICATIONS:

1 Auto replacement function, reposition after person pass by

2 Anti tail function auto-lock once turn 60° .

3 Arms auto drop when power off , insure unblocked when accident

4 Standard electronic interface, remote control through internet which is also could connect varieties of card readers and receive relay signal to work

5 Diverse control mode optional, changeable due to varying, convenient for your management

6 Auto alert error function, comfort for user maintain and operation

7 Manual button or remote control , bidirectional passage

8 Open signal with memory or with out set function

9 Red and green light to show pass or stop, leisure to exit and entrance

Technical parameters of tripod turnstile
Power voltage	AC220±10%,50Hz	Open angle	60°
Drive voltage	DC24V; AC12V+AC18V	Pass speed	≤ 30 persons/minutes
Running life	Continuous Opening and Closing operation More than 5 million times
Operation temperature	-30℃~+70℃	Structure	Frame or 304 Stainless steel cover
Relative humidity	≤95%,None-condensation	Open direction	Unidirectional and bidirectional (optional)
Input signal	12v DC level or DC12v pulse>100ms	Environment	Outdoor and indoor
Working Current	>2000mA	Protection Grade	IP54
Length of the bar	510mm	Width of passage	550mm

3 models of tripod turnstile

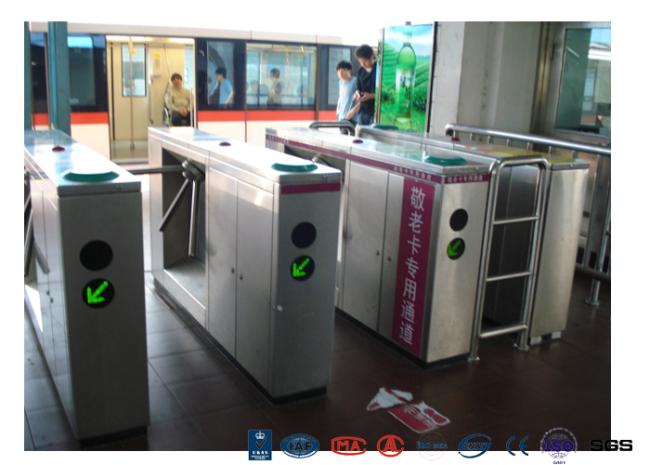

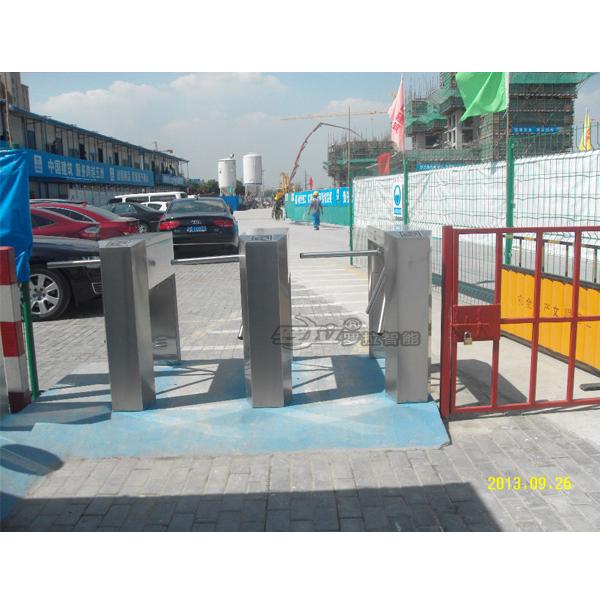

1. Automatic vertical tripod turnstile

Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
Optional operating mode: one side or both sides
Smooth operation, low noise.
Have received emergency function,falling down in outage situation, rising up when electricity.
Control panel with counting function, LED digital display function (optional)
Control panel with memory function
Standard input and output interface, is the best choice for system integrators

2. Semi-automatic vertical tripod turnstile

Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
Optional operating mode: one side or both sides
Arms unlock, rapid and reliable
Have received emergency function,falling down in outage situation, rising up when electricity.
Control panel with counting function, LED digital display function (optional)
Control panel with memory function
Standard input and output interface, is the best choice for system integrators

3, Mechanical vertical tripod turnstile

Unique positioning and reset system: automatic reset, the arms can always stay in a horizontal position.Mechanical transmission products. manual control operation, simple & high reliability
No maintaining, suitable for one-way current limiting situation
