Automatic Flap Security Barrier Gate , Waist Height Turnstile With Ticketing System
Automatic Flap Barrier Turnstile / Waist Height Turnstile with Ticketing System
KEY WORDS:
Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.
Product Features:
■ Stainless steel housing, novel and beautiful design, durable and stable mechanism.
■ LED Indicator Light of Automatic Waist Height Turnstile: Red and green light prompt the passing information.
■ Infrared and mechanical anti-clamping functions provide double protection.
■ All electric modules are designed to operate under the safety voltage of 24V, and Waist Height Turnstile is configured with residual current protective device to effectively avoid electric shocks.
■ Unique incomplete wheel transmission is adopted to make Waist Height flap barriers held or unheld in zero position more accurate and reliable.
■ Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits
■ Ticketing System Flap Barrier Gate is using 10 pairs of military level high-performance infrared sensors and exact algorithms, it can accurately detect the pedestrian’s passing position to achieve the purposes such as anti-tailgating, anti-reverse passing, anti-clamping and so on.
■ When power off, Hot Selling Automatic Flap Barrier Gate open automatically and power on again, Flap Barrier Gate will be held automatically.
SPECIFICATIONS:
|
Model |
RNCF F9088 |
RNCF F9088 |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
|
Thickness of ply |
1.3mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
1400mm*300mm*990mm (default) |
|
|
Material of flap |
different color Acrylic flap available or Red/Blue Soft flapper optional |
|
|
Stretching-out flap length |
230~235mm |
|
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC Brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
5 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
|
Warranty |
12 months |
|

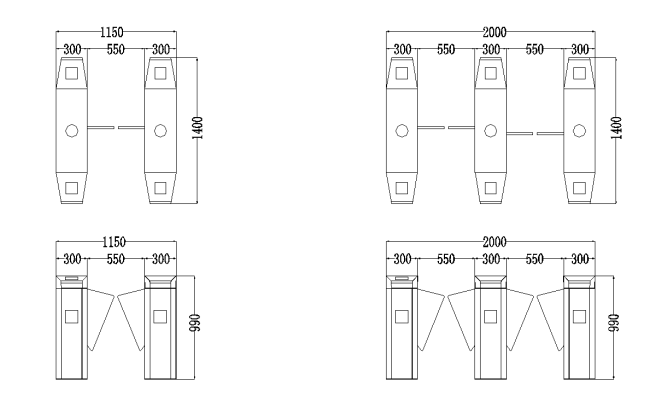

Dimension Figure:
