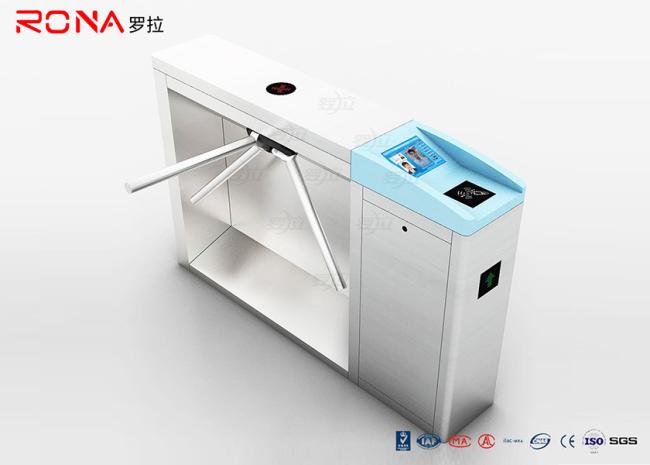

Semi Automatic Pedestrian Turnstile Gate Waist 304 Stainless Steel Tripod With Ticketing System
Semi-Automatic Pedestrian Access Control Waist 304 Stainless Steel Tripod with Ticketing System
Product Description
1)The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
2)Tripod turnstile is ideal for both indoor and outdoor settings.
3)It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4)In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
5)This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
6)There is a series of turnstiles. You can choose the item and specification. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruction!
Technical parameters
| Description | Parameters |
| Item / Model | RNCF P138 |
| Running life | ＞3 million |
| Working voltage | AC220±10% 50hz 50w |
| Max bearing stress of arm | 80KG |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.3S(adjustable) |
| Size | 1200mm*280mm*990mm |
| Thickness of Housing | 2.0mm |
| Length of the bar | 500-550mm |
| Passage width | 500-1800mm |
| Swing arm work angle | 180° |
Standard functions & features of Tripod Turnstiles Gate
| 1. | The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. |
| 2. | Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. |
| 3. | Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). |
| 4. | Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. |
| 5. | Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
| 6. | Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home |
| 7. | Optional indication of inside LED counter or outside LED counter |
| 8. | With interface of switch of relay, compatible with all the access controller |
Adaptive Place
1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.
