Type BX RX Thermocouple Cable Fiberglass Insulated Ss304 Sheath

Price Negotiable

Price: Negotiable

MOQ: 100 meter

Delivery Time: 5-15 working days

Brand: OHMALLOY/OEM

Product Description

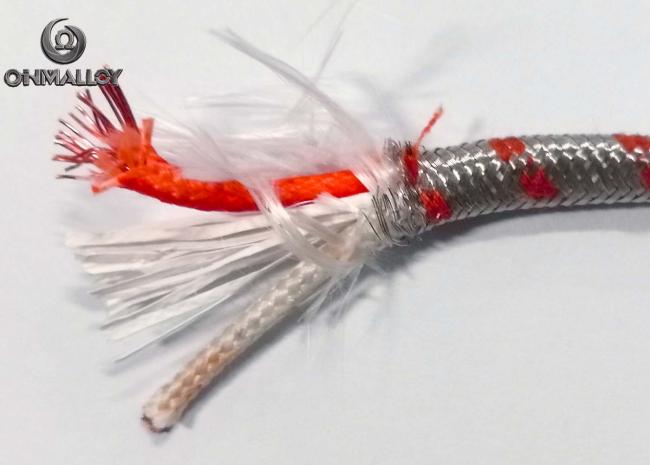

Thermocouple Cable Type BX RX Fiberglass Insulated Ss304 Sheath


Cable Specification
Item Name	Type RX/SX Extension Cable
Conductor Material	+Copper -Copper Nickel
Conductor Dia	19/0.3mm(1.5mm², ±0.01mm)
Insulation and Thickness	Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Insulation Diameter	2.0mm(±0.2mm)
Jacket Material	Fiberglass(long term: 400℃ short term:500℃) 0.2mm
Outer Sheath	SS304 Braiding
Outer Insulated Diameter	5.2*4.1mm(±0.2mm)
Outer Insulated Diameter	5.2*4.1mm(±0.2mm)
Weight	47KG/KM
Color Code	IEC-584-3 (+Orange -White Overall:Orange Tracer)

For the extension/compensation cable, the basic structure is conductor and insulation.

To increase its temperature bearing ability and to install easily, jacket is applicable.

In the working environment, there are too much factors will interference the EMF signal, therefore shield layer is practical way to prevent the cable from interference caused by complex environment.

Reference. The Short Name for Insulation Materials

Type	Insulation material	CODE	Inner Shielding	CODE	JACKET	CODE
K	FEP	FP			FEP	FP
T	PFA	FA	Al foil	AL	PFA	FA
E	PVC 70℃	LP	copper wire	CU	PVC 70℃	LP
J	PVC 105℃	HP	Tinned copper	TC	PVC 105℃	HP
N	Fiberglass 400℃	BL	Nickel plated copper	NC	Fiberglass 400℃	BL
SC	Fiberglass600℃	BM	Silver plated copper	AC	Fiberglass600℃	BM
	Fiberglass700℃	BH			Fiberglass700℃	BH
	MICA FIBER 650℃	MA
KCA	Vitreous Silica 800℃	VS	SS 304 wire	SS	Vitreous Silica 800℃	VS
KCB	Silica fiber1000℃	SV	Inconel 600 wire	600	Silica fiber1000℃	SV
RTD	Ceramic fiber1200℃	CF	Inconel 625 wire	625	Ceramic fiber1200℃	CF
	PTFE	PT			PTFE	PT
	ETFE	ET			ETFE	ET
	KAPTON	KP			KAPTON	KP
	Silicone rubber	SR			Silicone rubber	SR
	Rubber	RU			Rubber	RU
	PE	PE			PE	PE
