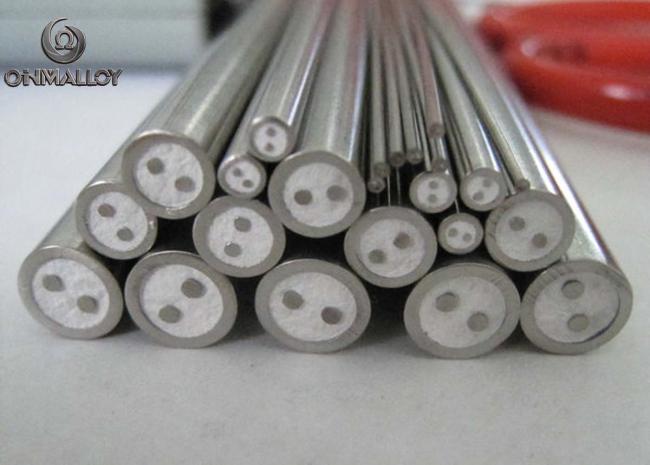

Mineral Insulated Thermocouple Cable Type K J RTD N S Stainless Steel Sheath

It is known as inorganic substance insulation thermocouple cable internationally. It is the mould-pressed solid integrity of combined stainless steel protective pile

(1) magnesium oxide insulation powder.

(2) and thermocouple thread materials .

(3) Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of sheath

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,

the value should be 50M/500VDC at least.

To produce assemblies, the cable is cut to the desired length, pigtails brazed on and terminated with union type glands with male NPT threads.

OHMALLOY can provide the following type and size of mineral insulated cable.
