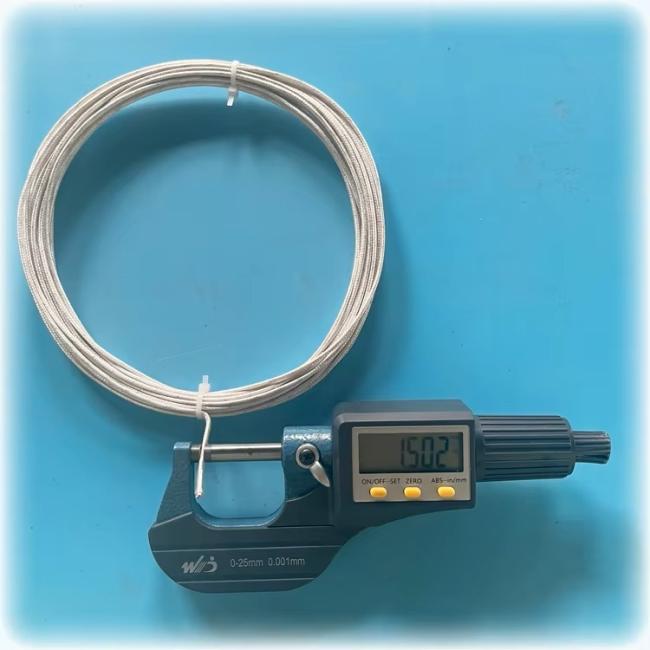

High Temperature Silica Fiber Insulated Type N Thermocouple Cable
Price:
Negotiable
MOQ:
50 Meters
Delivery Time:
5-15 working days
Brand:
OHMALLOY/OEM
Product Description
High Temperature Silica Fiber Insulated type N thermocouple cable
Insulation: FEP, TOFLON, PVC, PTFF, PFA, Fiberglass, Silicone rubber
TYPE N (NiCrSi Vs.NiCrMg) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
1. Chemical Composition
| Material | Chemical composition (%) | ||||
| Ni | Cr | Si | Mg | Al | |
| NP(NiCrSi) | bal | 13.7-14.7 | 1.2-1.6 | <0.01 | |
| NN(NiCrMg) | bal | <0.02 | 4.2-4.6 | 0.5~1.5 | |
2. Physical properties and Mechanical properties
| Material | Density(g/cm3) | Melting point℃) | Tensile Strength (Mpa) | Volume resistivity (μΩ.cm) | Elongation rate (%) |
| NP(NiCrSi) | 8.5 | 1410 | >620 | 100.0 (20℃) | >30 |
| NN(NiCrMg) | 8.6 | 1340 | >550 | 33.0(20℃) | >35 |
3. EMF Value range at different temperature
| Material | EMF value Vs Pt (μV) | |||||
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | |
| NP(NiCrSi) | 1755~1813 | 3910~3976 | 6313~6383 | 8880~8959 | 11552~11654 | 14307~14433 |
| NN(NiCrMg) | 975~1005 | 1954~1986 | 2975~3011 | 4035~4075 | 5120~5170 | 6212~6274 |
| EMF value Vs Pt (μV) | |||||
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | |
| 17129~17275 | 20010~20178 | 22951~23139 | 25943~26149 | 28972~29194 | |
| 7288~7362 | 8318~8402 | 9281~9373 | 10159~10261 | 10948~11060 | |
