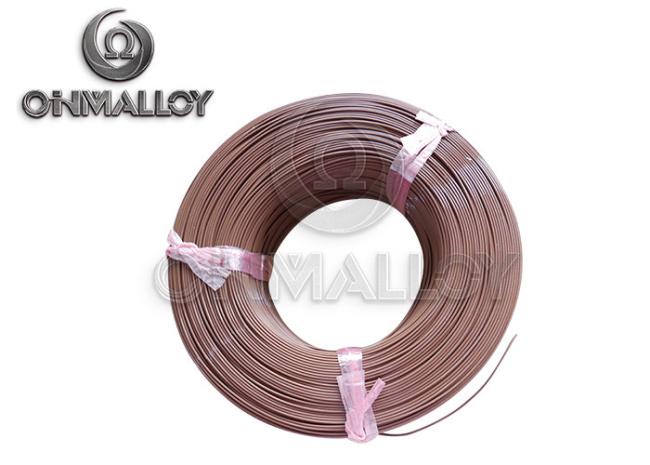

PTFE Insulated Resistance Wire NiCr80/20 0.5mm Dia For Heating Cable
PTFE Insulated Resistance Wire NiCr80/20 0.5mm Dia For Heating Cable
Made Process of PTFE Resistance Wire:https://www.youtube.com/watch?v=C08s7cKJ8NU
RTD Extension wire Type PT100 4x24AWG-PFA/PFA
1, SUBJECT
This specification covers the requirements for PFA insulated, PFA sheathed thermocouple extension cable, 4x24AWG,strand wire.
2, TECHNICAL FEATURES
A. Conductors:
Nickel plated cooper, stranded wire
| Conductor Size (AWG) | No. of Strands & Gauge |
| 24 | 7/0.2mm |
B. Insulation:
Extruded PFA ( 260ºC )
Nominal Insulation Thickness: 0.18mm ± 0.2
Color code: Red/Red/ White/White/ (2 cores red and 2 cores white)
C. Assembly:
Four conductors (cores) twisted construction.
D. Overall Jacket:
Extruded PFA ( 260ºC )
Nominal Sheath Thickness: 0.30mm ± 0.2
Color code: White
3, DIMENSIONS AND TOLERANCES
| Dimensions / tolerances (mm) |
| Ø2.85 ± 0.25 |
