Heating Wire 0Cr27Al7Mo2 Wire SWG15 1.83mm for electric furnace
Heating Wire 0Cr27Al7Mo2 Wire SWG15 1.83mm for electric furnace
OhmAlloy153
(Common Name:0Cr27Al7Mo2)
OhmAlloy153 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, higher operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1400°C.
Typical applications for OhmAlloy153 are used in heating element of the single crystal furnace, sintering furnace, ceramic calcining furnace and heat treatment furnace and diffusion furnace when the temperature is more than 1200°C.
Typical Physical properties
| Density (g/cm3) | 7.10 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.53 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 16 |
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.05 | 0.025 | 0.025 | 0.20 | Max 0.40 | 26.5~27.8 | Max 0.60 | 5.0~7.0 | Bal. | Mo 1.8-2.2 |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 460 | 700 | 20 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.49 |
| Melting point (℃) | 1520 |
| Max continuous operating temperature in air (℃) | 1400 |
| Magnetic properties | non-magnetic |
Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy153W | Wire | D=0.03mm~8mm | ||
| OhmAlloy153R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy153S | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy153F | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy153B | Bar | Dia=8~100mm | L=50~1000 | |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ |
| 1 | 0.997 | 0.996 | 0.994 | 0.991 | 0.990 | 0.990 | 0.990 | 0.990 | 0.990 | 0.990 | 0.990 | 0.990 |

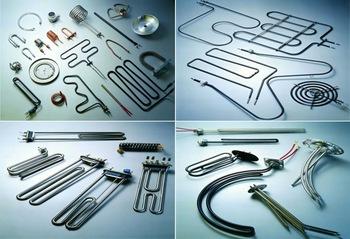

Application
Testing room
Packaging
Shipping
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
